2025 Original Autel Maxisys Ultra Full System Diagnostic Tool With MaxiFlash VCMI Support ECU Programming

100% Original Autel Maxisys Ultra Automotive Full Systems Diagnostics Tool With MaxiFlash VCMI

MaxiSys Ultra is Autel’s most ambitious diagnostics tablet. It features a 12.9-inch touchscreen tablet with Android 7.0 OS powered by an Octa-core processor (2.3GHz Quad + 1.7GHz Quad), substantial 256GB built-in memory, all powering the new split-screen multi-application navigation to provide diagnostic guidance and test components to confirm repairs. Combined with the dynamic topology module mapping, enhanced AutoSCAN features and advance Diagnostics options. The new MaxiFlash VCMI functions as a 4-channel oscilloscope, waveform generator, multimeter, and CAN BUS tester. The convenient docking station featured ensures you always have the power to scan.

Autel Maxisys Ultra Highlights:

1. No IP Limitation
2. Updated Version of MK908P/ MS908P/ Elite/ MS909/ MS919: All-in-one comprehensive scanner for large repair workshops
3. One Year Free Update Online on Autel Official Website
4. Support New VCI Protocols: D-PDU, DoIP/ CAN FD, Mega CAN
5. Advanced VCMI 5-In-1 Device: VCI, OSCILLOSCOPE, MULTIMETER, WAVEFORM GENERATOR, CAN BUS CHECK
6. Provide Latest OE Level Coverage for more than 80 US Domestic, Asian and European vehicles, including supercar
7. Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming
8. Secure Gateway Access: Authorized FCA SGM Access with AutoAuth Account
9.Split-Screen Multi-Application Navigation with Super Fast Running Speed, Greatly Improving Your Work Efficiency

Notice:
1. Not support Benz gateway.
2. Default Language: English.

Autel Maxisys Ultra Functions:

1.  Advance Diagnostics and VCMI 5-in-1

5-in-1 VCMI, Diagnose & Program Vehicles More Efficiently
Except working as a diagnostic tool, it also functions as a 4-channel oscilloscope, waveform generator, multimeter, and CAN BUS tester.
More Advanced than J2534: With the 3 diagnostic protocols (D-PDU/SAE J2534/RP1210), Ultra can work with more OEM diagnostic tools and diagnose & program more vehicles than J2534 programming tools.

1). New Combination Vehicle Communication and Measurement Interface
* D-PDU / J2534 / RP1210 Diagnostic Protocols Cover More Vehicle Types
* DoIP / CAN FD Protocols for High-Speed CAN Cover New Vehicle Models
* NEW Oscilloscope – Faster Bandwidth 20MHz / Sample Rate 80MS/s
* Higher 12-Bit Resolution / Larger Memory 32Mil Samples

2). Affordable Test Component Combination for Repair Confirmation
* Combined Signal Detection and Signal Stimulation
* OBDII Channel Detection / DLC Pin Location and Direct Measurement
* Protocol CAN Testing / Advanced Triggering / Auto-Scale Zooming

3). Easier Operation of Built-In Preset Guided Tests for Faster Operation
* Custom Probe Specification & Reference Waveform Libraries
* Saved Test Configurations / Component Tests / Data Graphs

All System Diagnostics

Autel MaxiSys Ultra mechanic tool can diagnose all systems including engine, transmission, brakes, steering, suspension, electrical, and other components that work together to make the vehicle operate correctly. Compared to using specialized OE manufacturer scan tools, with Autel MaxiSys Ultra car scanner you will end up saving a lot of money and effort due to:

Better Compatibility: this mechanic tool can build a communicating bridge to 99% OBD2 cars’ accessible computers and modules. You don’t need the specialized professional auto scan tool that can only perform scans on limited systems.
More Advanced Features: this diagnostic scan tool for all vehicles offers advanced features such as bi-directional control, read/clear DTCs, display graphic live data (can be merged) for your daily repair maintenance work, and even coding/programming capabilities to handle more complex repairs.
More User-friendly Interface: the menu layout is among the most-straightforward of the automotive scanner diagnostic tool on the market. While, the OE dealership diagnostic tools may be complex and require specialized training.
More Cost-effective: you can get the same level of diagnostic capabilities as OE manufacturer diagnostic tools at a lower cost.

Bi-directional Control: Experience High-Speed Diagnostics

Looking for an easy way to assess the health of your vehicle? With this bi-directional obdii car computer, you can directly send the command to activate the relays, coils, solenoids valves, actuators of your vehicle, and receive a response to see if they are functioning properly. This way, you don’t need to make time-consuming work, and quickly locate the faulty auto parts.

For Example: “turn on the radiator fan – modulate the throttle – open/close windows – operate mirrors – test injector buz – turn on interior/exterior lights & sound horn – test injector – turn off ACC lane keeping assist system (LKAS) – turn on/off front & rear side ACM solenoid – turn on/off the fue.l pump – cycle the A/C – clutch on/off – test left clutch electromagnetic coil – test acceleration device – test oil pressure control – aim dynamic camera – calibrate vehicle level position – pump brake vacuum – test inlet & outlet valve – test open brakes – supply wheel speed sensor – test parking brake and more.”
It is compatible with most vehicle models on the market, but the menu varies by make/model/year.

40+ Reset Service

With one-stop Intelligent Diagnostics, Autel Scanner MaxiSys Ultra provides techs with step-by-step repair guidance. It offers multiple repair guidance options: Technical Service Bulletin, DTC Analysis, Repair Assist, Repair Tips, Component Measurement, and Relevant Cases, making your work 200% easier than ever. Also, it has 40+ service functions to meet all the needs, helping your win more business.

Oil Reset, EPB, BMS, ABS Bleed, TPMS, Airbag Reset, DPF Reg., IMMO Service, Injector Coding, SAS Calibration, Suspension Calibration, Throttle Adaption, ABS/SRS, Gear Learning, Sunroof Initialization, Seats Calibration, Language Change, Headlight Matching, A/F Setting, WIN DR Roof, Odometer, CHG Tire Size, Cylinder, Turbocharging, Limit, Trans Adaption.

Neutral Gear Position Learning, Torque Sensor Adjustment, Signal Check, Yaw Rate Sensor (YRS) Learn, Clutch Pedal Position Learn, Cylinder Power Balance, Component Matching, Stop/Start Reset, Transport Mode, Auto-Door Lock, etc.

Oil Reset, to reset the oil service lamp for the engine oil life system; EPB Reset, to reset the brake pad after replacing the brake pad.
ABS Bleeding, to perform various bi-directional tests of Anti-lock Braking System;
Injector Coding, to write the new code to the ECU after replacement of injector.
Suspension Calibration, to adjust the height of the body; SAS Calibration, to calibrate the steering angle after replacement.
Anti-theft Matching, to disable the lost key and add the new key’s data for security.
BMS Reset, to perform a resetting operation on the monitoring unit of the vehicle battery.
Tire Pressure Reset, to look up the tire sensor IDs, reset tire pressure, and turn off the tire pressure MIL.
DPF Reset, to retrieve/erase DPF-related codes, and reset the DPF light.
Throttle Matching, to make initial settings to throttle actuators.
Gearbox Matching, to achieve a more comfortable and ideal shift quality.
WIN DR ROOF, Seats, Odometer, Lang Change, Headlamp, CHG Tire Size, TEC Learn, Cylinder, Trans Adaption, Airbag Reset, etc., and are still growing.

ECU Programming & Coding

Autel MaxiSys Ultra can program & code more vehicles to re-flash the vehicle control modules, replace ECUs, update software, etc. Meantime, it supports online programming & coding for BMW (F & G chassis) and online programming for new chassis of Benz. With 10+ core functions (Active Test/Guided functions/Personalization/Modifications/etc.) in one, Autel Ultra offers techs maximum convenience and swift diagnostics.

A. Coding–also known as Teach-in Program, or Component Adaptation, is used to reprogram adaptive data for vehicle control modules after repairs or replacements of vehicle parts.
B. Programming –downloads the latest version of software from the online server database through Internet access (this procedure is done automatically when the tablet is connected to the Internet, so there is no need to check for software updates yourself), and reprograms the newest version into the vehicle’s ECU.

Autel MaxiSys Ultra with VCMI can help you solve all above issues. With D-PDU, SAE J2534 & RP1210 protocols, Auto scan tool Maxisys Ultra provides diagnosing, coding, and programming for more passenger and commercial vehicles, much more advanced than J2534 programming tools.

Online ECU programming & coding without any special connectors for BMW (F & G chassis);
Online ECU programming for new chassis of Benz (204, 212, 207, 463, etc.); Online SCN for Benz (222, 212, 204, 205, etc.);
Online ECU coding for Volkswagen, Audi, Porsche, Renault, etc.
ECU programming & coding for GM, Ford, Chrysler, Volvo, Land Rover, Jaguar, etc.
The VCMI module also supports various common vehicle buses protocols, for instance: KPW, CAN, CAN-FD, DoIP, etc. Speaking of the CAN-FD, its transmission speed is 14 times faster than CAN.

Faster Ssanning

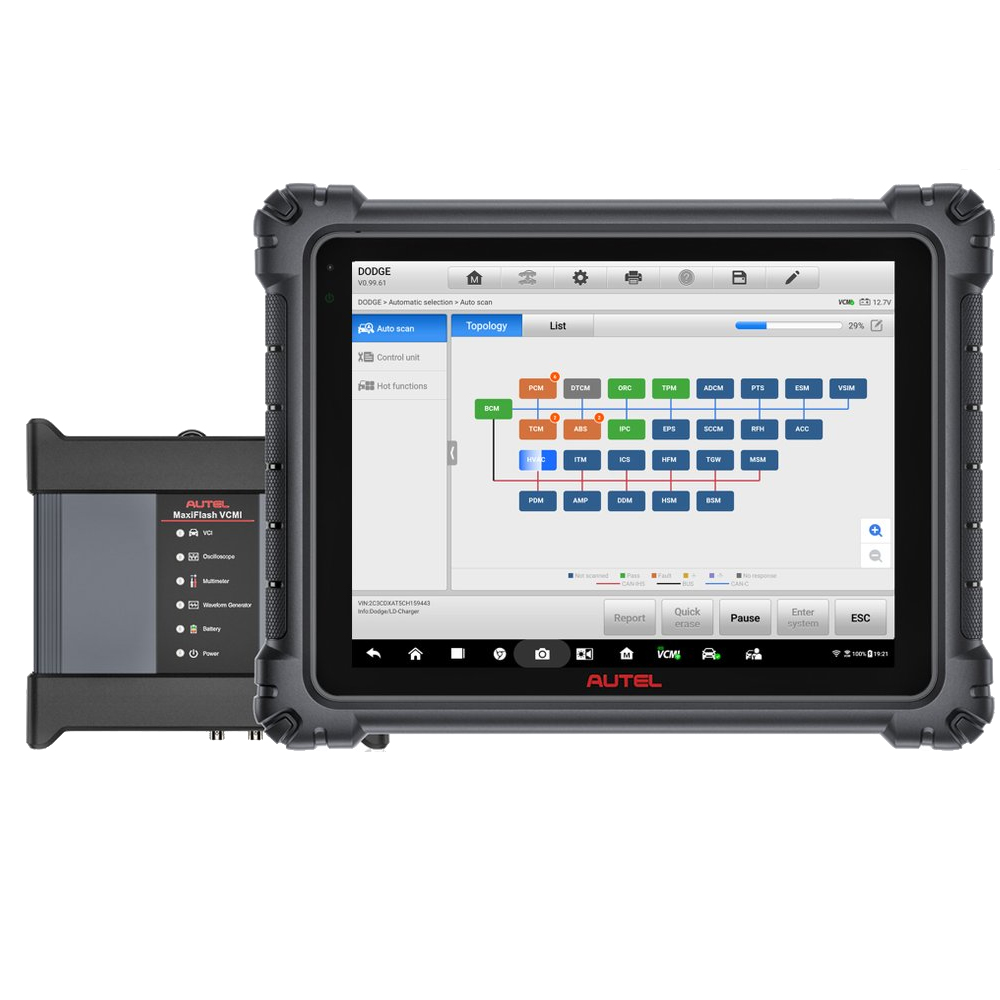

1). NEW Topology Module Listing CAN BUS Tree
* Single Page Color Coded Module Status Mapping
2). Enhanced DTC Guided AutoScan Module Listing
* Review Module DTCs From AutoScan With Greater Detail
3). Scan VIN NEW Feature – Barcode or Text Recognition
* Easily Scan Vehicle ID by Camera to Identify

Secure Gateway Access

Easier Automatic Scan Tool Authentication
* Authorized OEM Access Account Registration
* Confirmation of Compatible Diagnostic Platform
* Approved Credential Stored in Maxisys Software
* Immediate Authorized Secure Gateway Access
* Management of Registered Account Use

How The Autel Ultra Differs from The Maxisys Elite and MS908S/ Pro:

1. Android 7.0
2. With More Memory: 256GB Memory
3. With Larger Screen: 12.9-Inch Touchscreen
4. With MaxiFlash VCMI Interface:  With The Updated J2534 VCI includes oscilloscope, waveform generator, multimeter, CanBUS tester
5. Topology M Module Listing CAN BUS Tree
6. Split Screen View to View Two Different Functions
7. With Faster processor
8. Does not Include a Docking Station
9. Does not Include Early OBD-II Adapters!

Product Display:

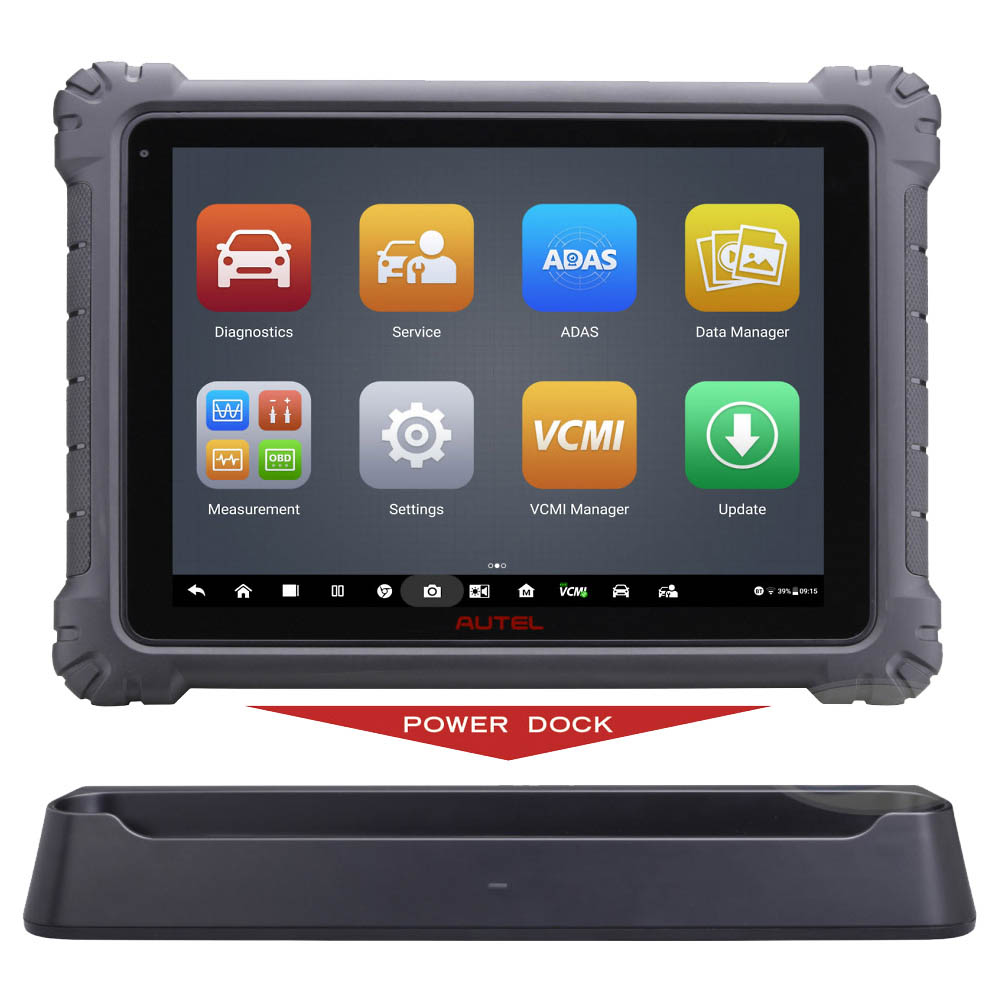

The Autel MaxiSys Ultra is a multi-platform diagnostic solution comprised of a powerful 12.9-inch TFT-LCD touchscreen Android-based tablet, a VCMI communication and diagnostic  measurement unit and an on-tool and cloud-based instructions and expert advice. As a diagnostic and information system, MaxiSys Ultra not only displays the  relevant repairs gathered from experienced industry experts, but provides step-by-step  guidance to ensure the repair is done correctly and efficiently.

There are two main components to the MaxiSys system:
* MaxiSys Tablet – the central processor and monitor for the system.

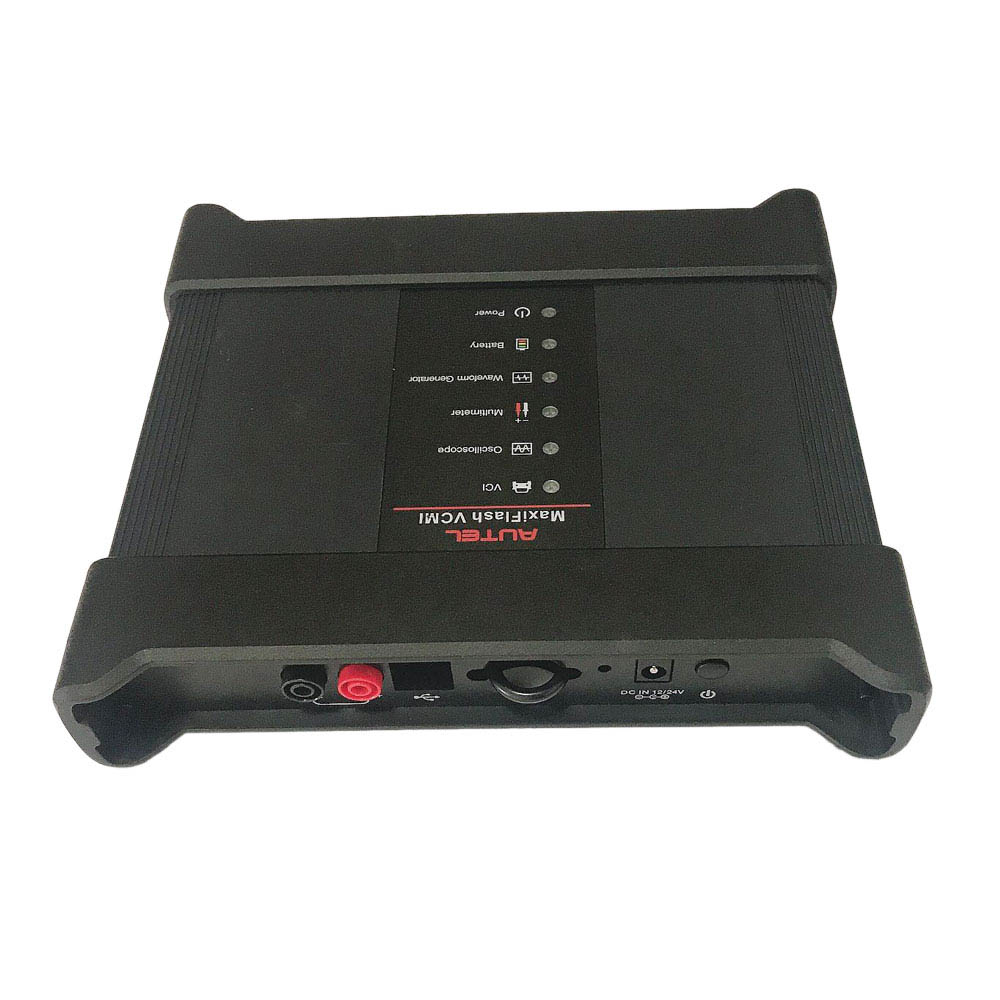

* MaxiFlash VCMI – Vehicle Communication and Measurement Interface
This manual describes the construction and operation of these devices and how they work together to deliver diagnostic solutions.

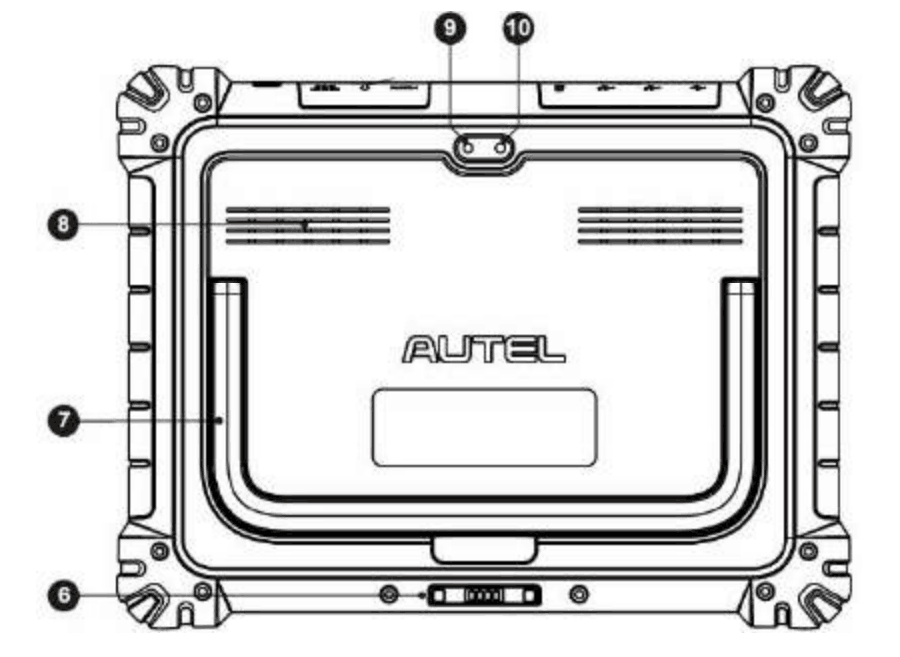

1. 12.9″ TFT-LCD Capacitive Touch Screen
2. Ambient Light Sensor – detects ambient brightness
3. Power LED – refer to Table 2-1 Power LED Description for details
4. Front Camera
5. Built-in Microphone

6. Docking Station Port
7. Collapsible Stand – extends from the back to allow hands-free viewing of the tablet
8. Speaker
9. Rear Camera
10. Camera Flash

11. Mini USB Port – Cannot be used with the USB Port simultaneously
12. USB Port
13. USB Port
14. Mini SD Card Slot
15. HDMI (High-Definition Multimedia Interface) Port
16. Head Phone Jack
17. DC Power Supply Input Port
18. Lock/Power Button – long press to turn on and off the Tablet, or short press to lock the screen.

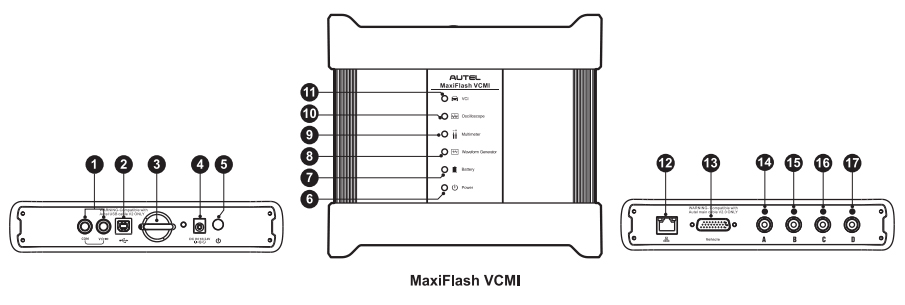

1. Multimeter Jacks
2. USB Port
3. Hook
4. DC Power Supply Input Port
5. Power Button
6. Power LED – refer to Table 2-4 Power LED Description for details
7. Battery LED – refer to Table 2-5 Battery LED Description for details
8. Waveform generator LED – lights green when operating in the waveform generator mode
9. Multimeter LED – lights green when operating in the multimeter mode
10. Oscilloscope LED – flashes green when operating in the oscilloscope mode
11. Vehicle LED – refer to Table 2-6 Vehicle LED Description for details
12. Ethernet Port
13. Vehicle Data Connector (DB26-Pin)
14. Input Channel A
15. Input Channel B
16. Input Channel C
17. Input Channel D

Autel MaxiSys Ultra Specifications:

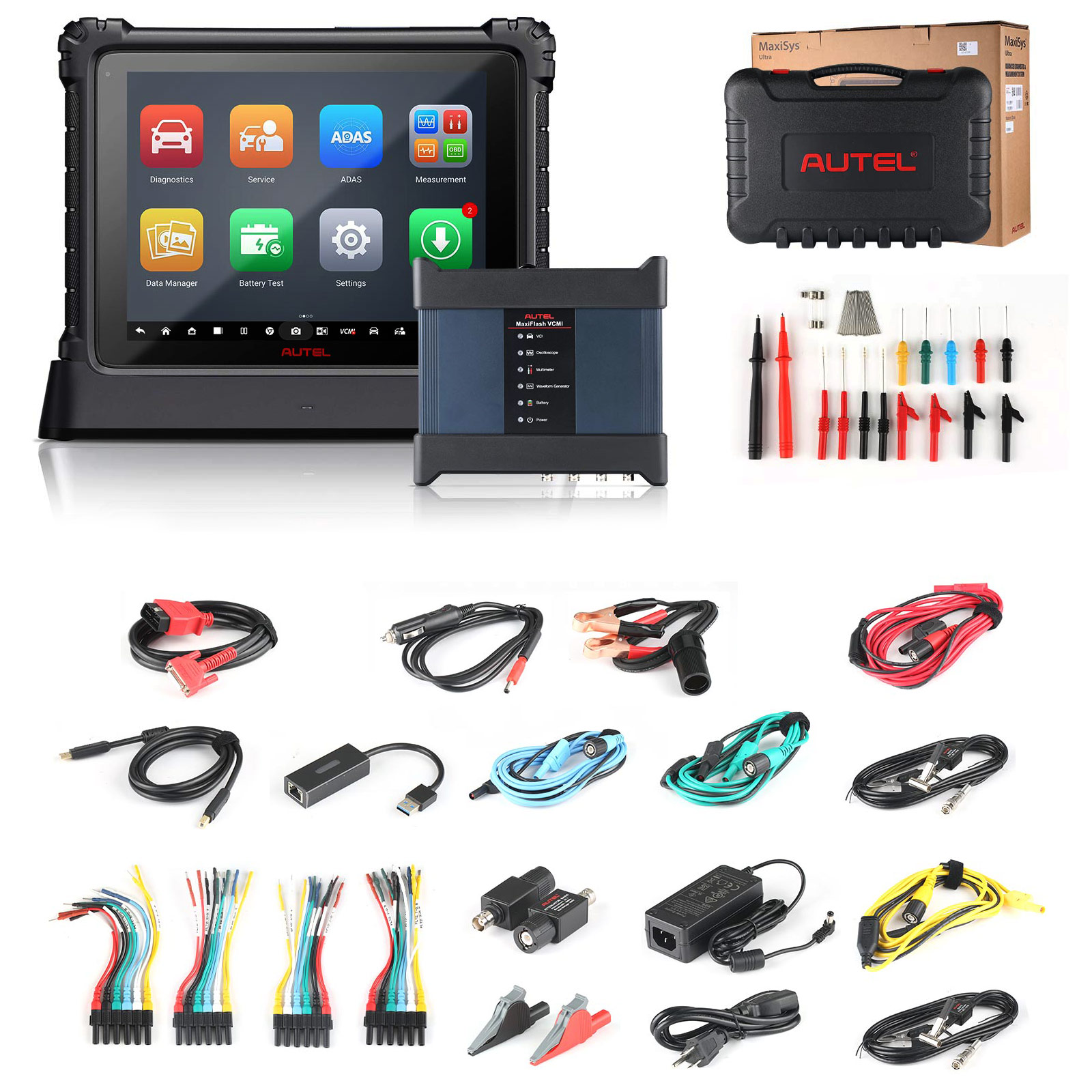

Autel MaxiSys Ultra Package List:

1pc x Main Unit
1pc x MaxiFlash VCMI
1pc x Main Cable V2.0
1pc x USB 2.0 Cable V2
1pc x AC/DC Adapter(12V)
1pc x Cigarette Lighter
2pcs x Light Fuse 6x30mm
1pc x Clipper Cable
4pcs x Scope Test Lead
2pcs x Multimeter Test Lead
2pcs x Secondary Ignition Pickup
2pcs x Attenuator 20:1
1set x Breakout Lead 4×6 PCS
2pcs x Multimeter Probe
1set x Flexible Back-pinning Probe 2×2 PCS
1set x Back-pinning Probe – Red/Green/Blue/Yellow/Black 1×5 PCS
2pcs x Back-pinning Probe Screw
20pcs x Back-pinning Probe Replacement Needle
1set x Small Crocodile Clip 2×2 PCS
1set x Large Dolphin Clip 1×2 PCS
1pc x Quick Reference Guide
1pc x Packing List
1pc x Soft Cloth
1pc x Tool Box
1pc x Carrying Case
