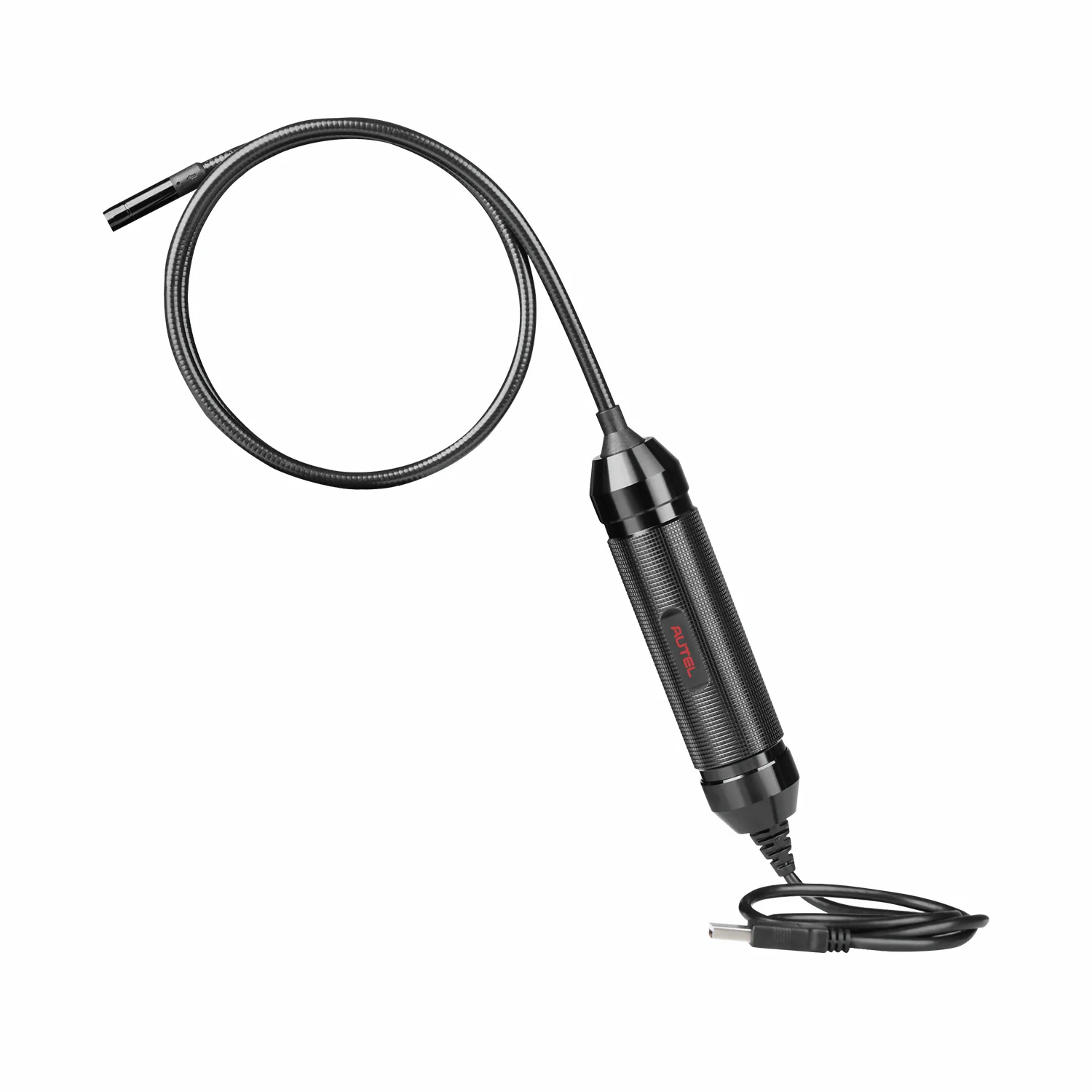

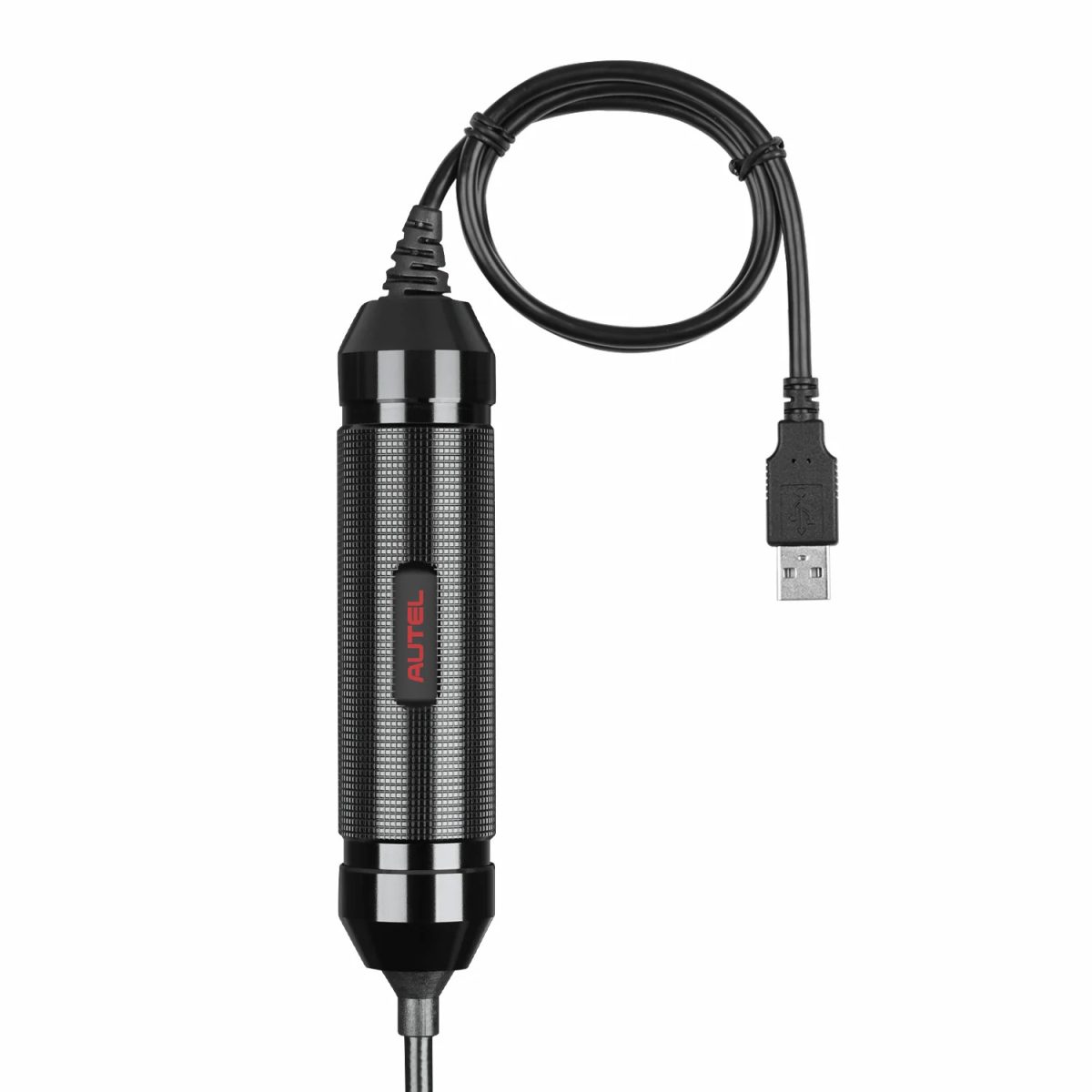

Original Autel MaxiVideo MV108S 8.5mm Digital Inspection Camera for MaxiSys Tablet Kit
The MaxiVideo MV108S digital inspection camera is designed to work with MaxiSys series products(except MaxiSys 906) or PC. It turns your MaxiSys tablet into a video inspection scope, allowing you to examine difficult-to-reach areas normally hidden from sight. It is capable of recording digital still images and videos, which offers you an economical solution to inspect machinery, facilities, and infrastructure in a safe and quick way.
Product Features:
White LED lights to illuminate the inspection areas.
Small diameter allows it to be used in the tight spaces.
Wonderful for up-close visual inspections in confined areas, such as engine cylinders and small part inspections.
Powerful and perfect for inspecting most spark plug holes.
Super bright LED and high resolution provide crystal clear images.
Product Comparison Between MV108S and MV108:
| Product Models | / | MV108S | MV108 |
| Basic Hardware | Imager head | 8.5mm | 8.5mm |
| Depth of field | 3-8cm | 2-6cm | |
| Field angle | 81° | 70° | |
| The length of Imager Head Cable | 1m | 1m | |
| Pixel | 2000,000 | 300,000 | |
| Flash | Yes | Yes | |
| Connection method | USB2.0 | USB2.0 | |
| Assembly method | The imager head cable is irremovable. | The imager head cable is removable. | |
| Imager Head Cable waterproof level | IP67 | IP67 | |
| Working temperature | -10°C to 70°C | -10°C to 70°C | |
| Storage temperature | -10°C to 70°C | -10°C to 70°C | |
| Accessories | Reflector | Yes | Yes |
| Hook | Yes | Yes |
Product Specifications:
| Imager Head Distance | 8.5 mm |
| Camera | 2 MP |
| Resolution | 1920 x 1080 |
| Depth of Field | 3 cm to 8 cm (1.18” to 3.15”) |
| LED Beads | 8 pcs |
| Imager Head Cable Length | 1 m (39.37″) |
| Waterproof Level (Imager Head) | IP67 |
| Operating Temp. | -10 °C to 70 °C (14 °F to 158 °F ) |
| Storage Temp. | -10 °C to 70 °C (14 °F to 158 °F ) |

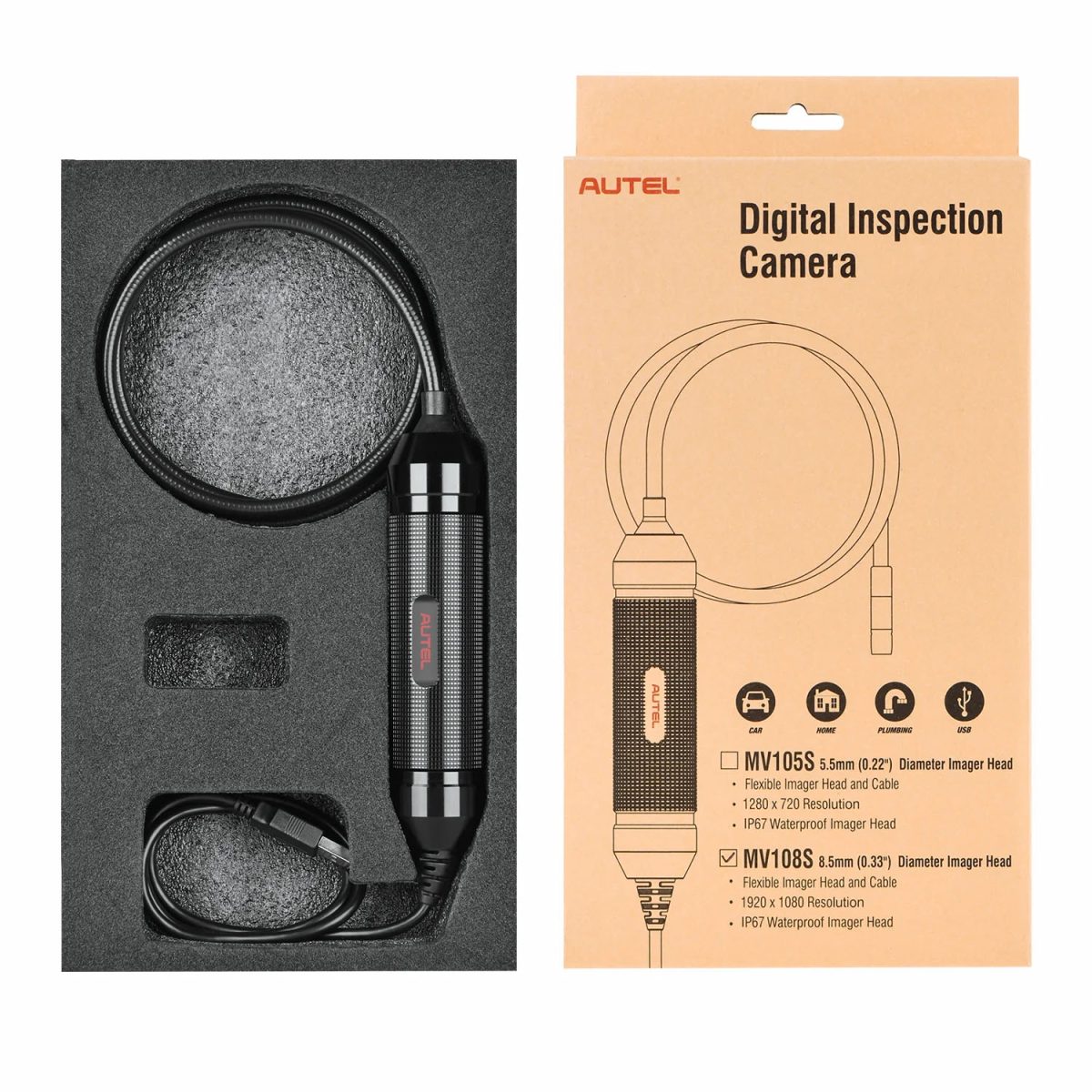

Package includes:
1pc x MaxiVideo MV108S
1pc x Magnet
1pc x Mirror
1pc x Hook
