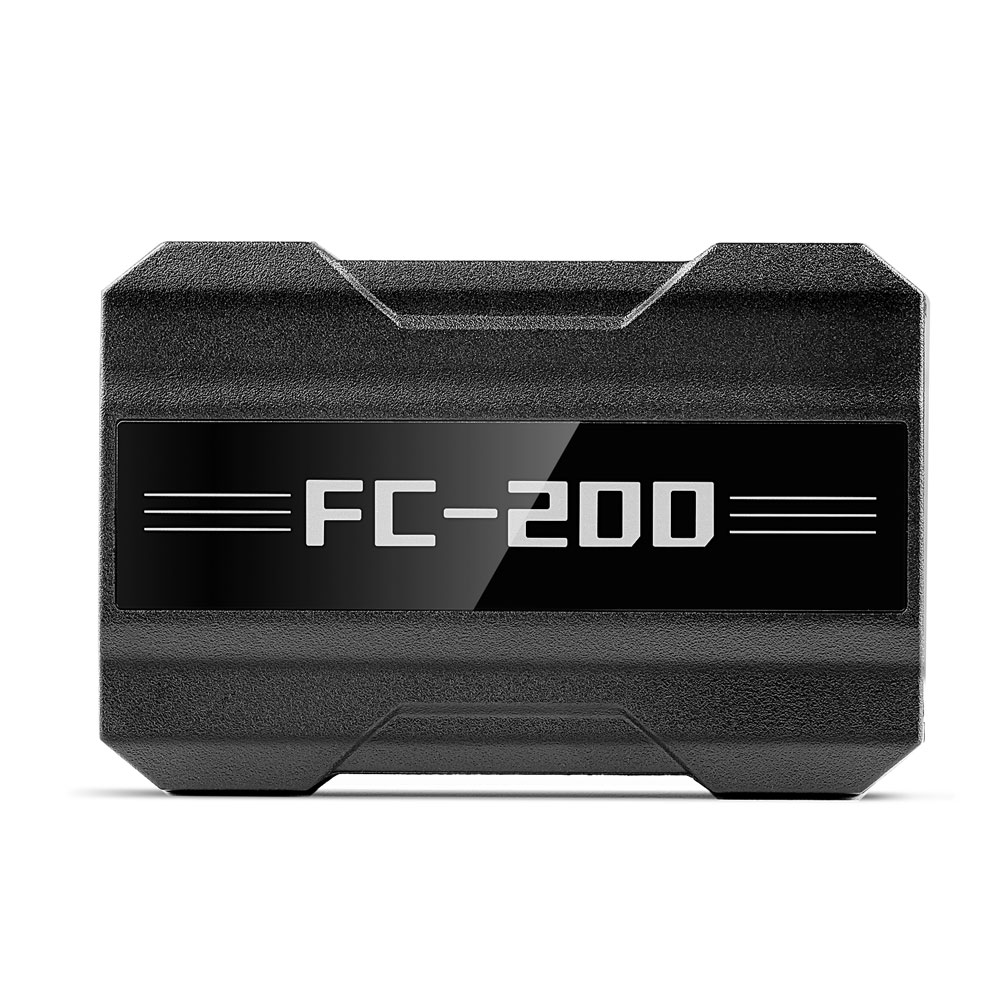

CG FC200 ECU Programmer Full Version with New Adapters Set 6HP & 8HP / MSV90 / N55 / N20 / B48/ B58 and MPC5XX Adapter for EDC16/ ME9.0

CG FC200 ECU Programmer Full Version with New Adapters Set 6HP & 8HP / MSV90 / N55 / N20 / B48/ B58 and MPC5XX Adapter for EDC16/ ME9.0 etc

Highlights:

1. Protect Original Car Parts
More than 98% of ECUs support BENCH mode and OBD mode, no need to open the cover and punch holes to protect the original car.

2. Intelligent Recognition
The “identification” function can help users better diagnose whether the ECU module is communicating and check whether the wiring is wrong. If the ECU module can communicate without damage and the wiring is correct, the recognition can be successful, and the chip information, hardware information and firmware information can be read out.

3.Module Clone
Supports ECU data reading and writing and module cloning, no synchronization matching, no online programming, data sub-regional burning, automatic verification, and maximum protection of chips and modules.

4. ISN Read and Write
Supports engine computer ISN code acquisition for all BMW series (including Mini), which is convenient for key matching and anti-theft maintenance.

5.VIN modification
Solve the problem of double VIN or VIN mismatch of vehicles, which is convenient for vehicle maintenance.

6. Data Processing
Support engine computer data analysis and modification for Audi/Seat/Skoda/Volkswagen models;
Support the shutdown of Bosch MED/EDC17 series engine computer anti-theft system;
Support the TPROT off function of Bosch VAG MEDC17 series, BMW/Mini MEVD17/EDC17 series, Hyundai/Kia EDC17/MED(G)17 series.

7. FC200 not only support BMW ECU but also support over three thousands of ECUs like KTAG, Kess, Dimsport etc.
Check FC200 Support ECU List

8. Multi-Language: English, French and Simplified Chinese
Spanish, Polish, Turkish and Traditional Chinese need to pay $130.

9. Full Version with All License Activated.
After 1 Year Free Update, It will cost $200/year for FC200 Update Service

Get free Denso ECU read/write function (A1000010) and CHINA DELPHI MTxx read/write function (A100000F)
Please send us FC200 serial number to activate these license to you.

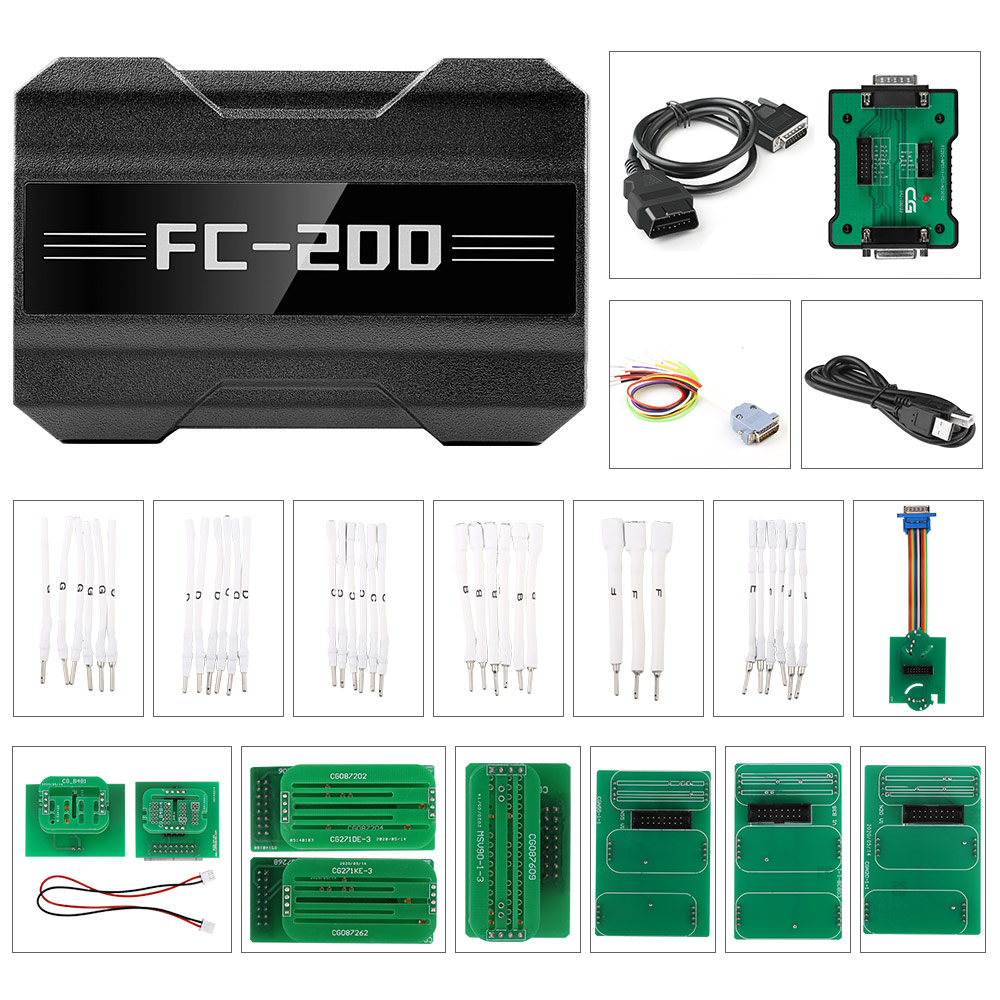

10. With New Adapters Set No Need Disassembly in Package:

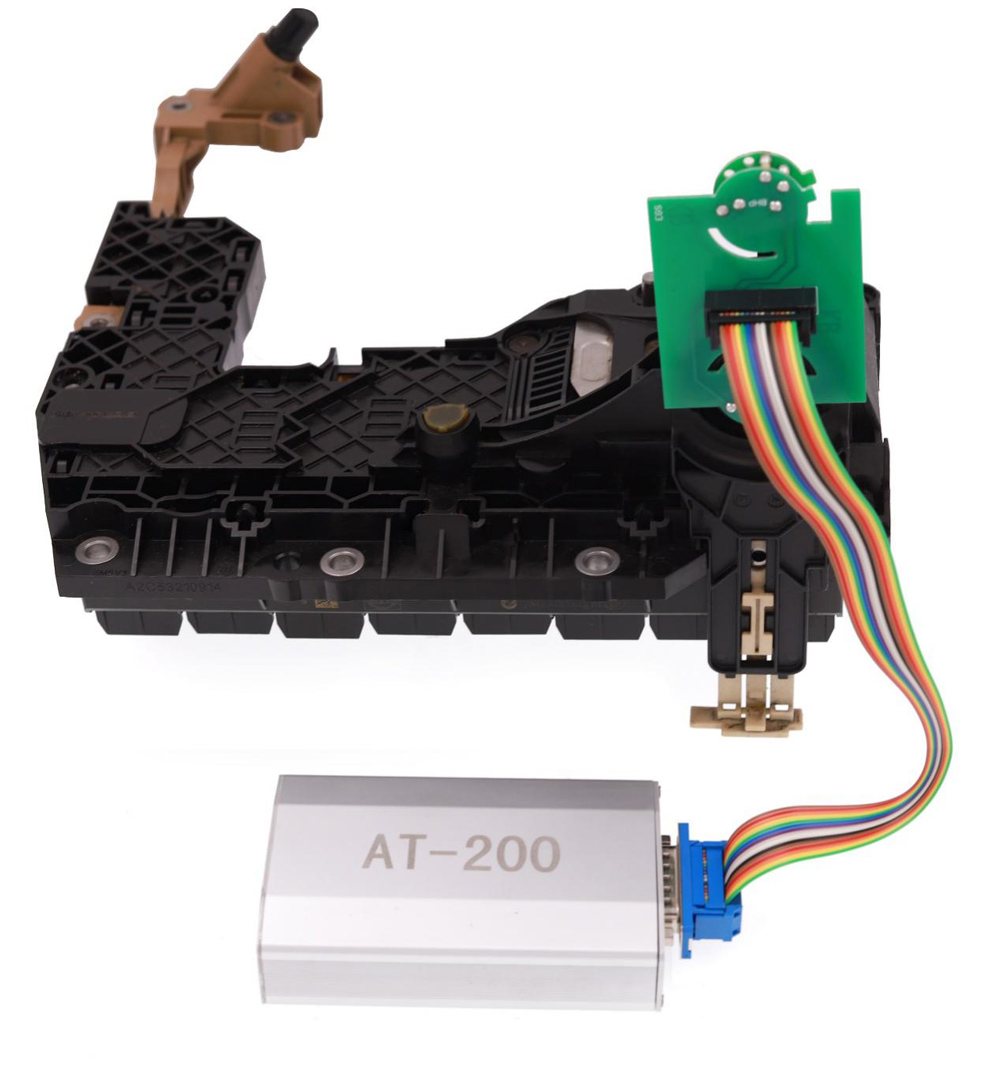

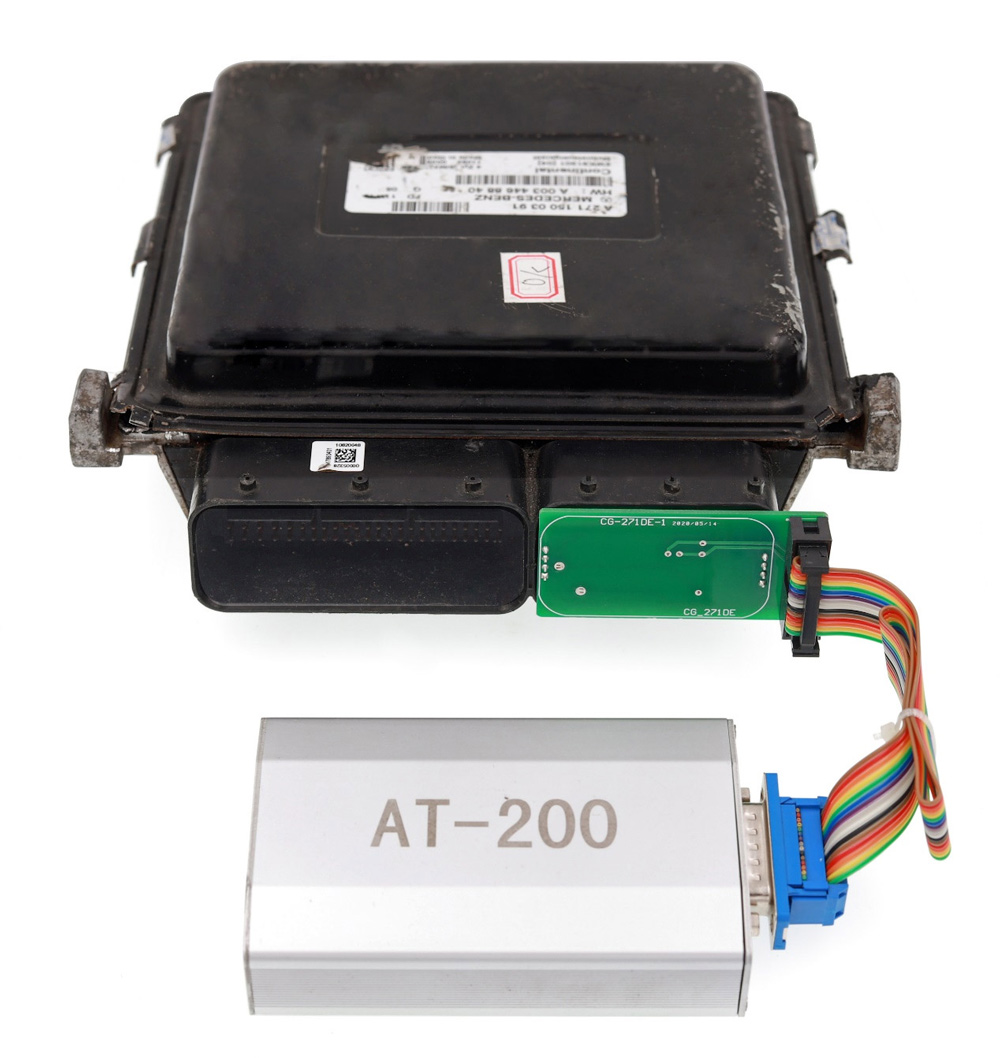

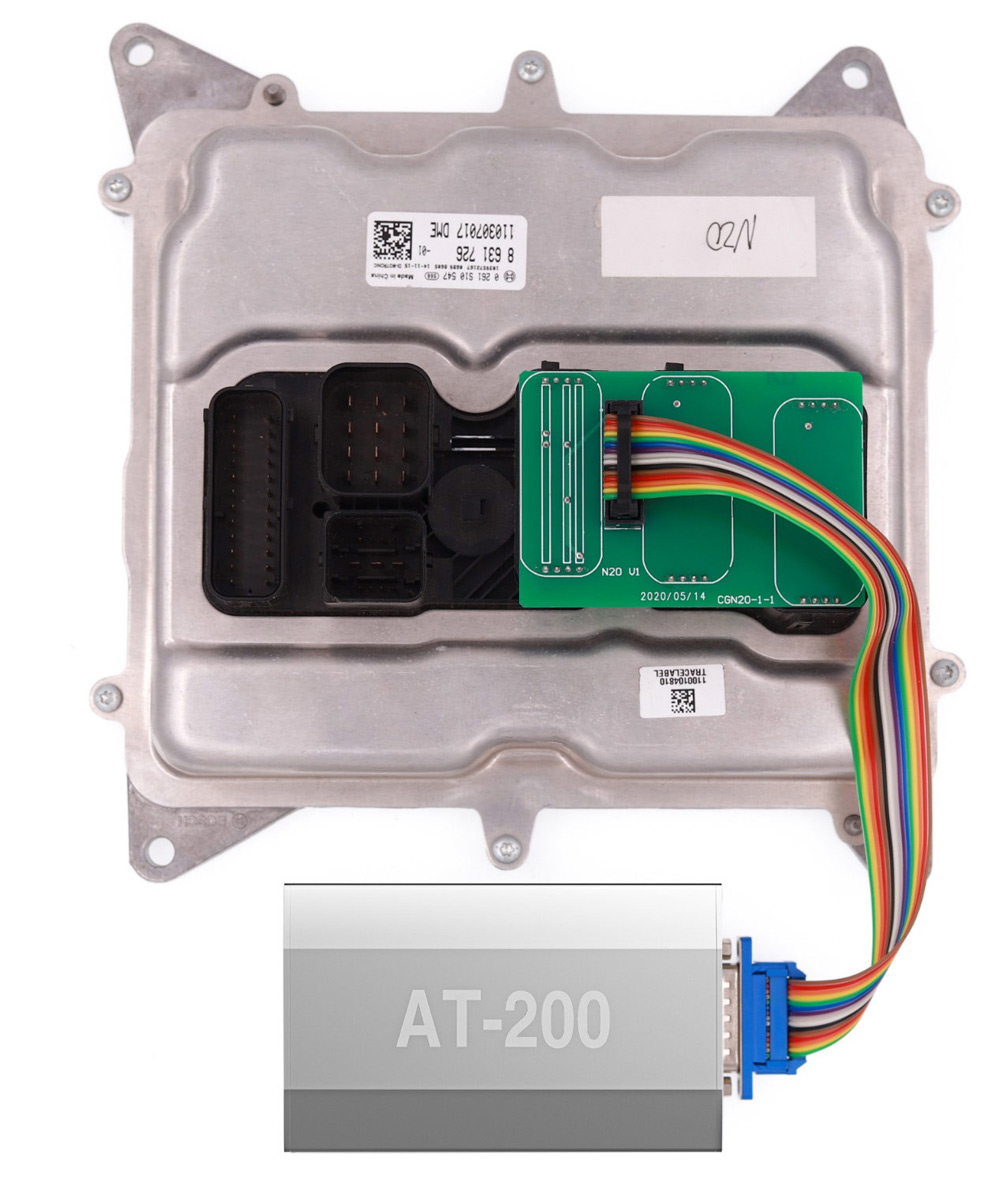

Adapters Including: 6HP & 8HP, MSV90, N55, N20, B48/B58, B38, 271KE Adaper, 271DE Adapter.
(With this adapter set, you won’t need the old B48/B58 cable anymore).

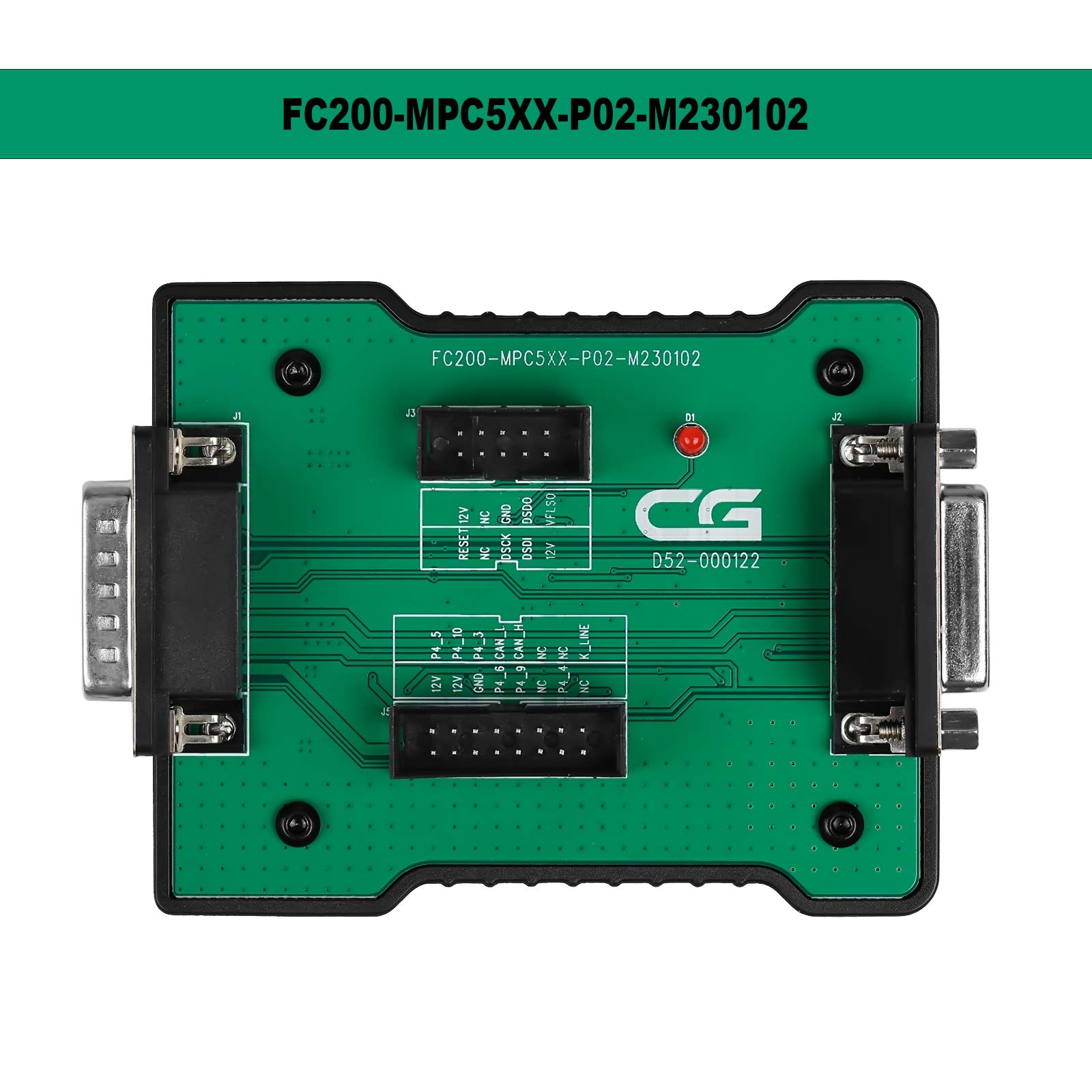

11. With FC200 MPC5XX Adapter in Package, Support BOSCH MPC5xx platform mode ECU: MED9.1, MED9.5, MED9.5.10, ME9.0, EDC16CP31, EDC16CP35, EDC16C2, EDC16C8

FC200 Latest Update Information:

CG FC200 V1.2.6.0 Registered Version New (2025.02.27)

New Functions:
1. “Three readiness monitors not ready” function:
DELPHI: MT22.1, ME22.1.1, MT22U
Jiangling/Foton/Great Wall: EDC17C81/EDC17C63/EDC17C53
Jaguar Land Rover: MED17.0.1, MED17.0, MED17.9.7, MED17.9.8, MED17.9.9, MED17.8.31, MED17.8.32
Fiat: ME17.3.0

2. ECUs with newly added checksum: MT20U, MT22U, MT20U2, MT22.1, MT22.1.1
3. M7, ME7.8.8 added the function of modifying CALID code
4. Added Wuling SIM2K-D51 module, and supports verification function, VIN modification and three readiness monitors not ready functions
5. Added Wuling SCE60 module
6. Added Hyundai SIM2K-47 module
7. Added ECUs with VIN modification function:
Marelli ECU: 8GMK, 8GML, 9GC
Bosch ECU: ME7.4.5, M7.9.8

8. Added ECUs:
Volkswagen: simos12.1
Hyundai Kia: MEDG17.9.8

Bug fixes:
1. Optimized the read and write functions of ME17.9.23 and ME17.9.21.1, EDC17C69
2. Fixed the problem of some DCM7.1APs failing to read and write PFlash
3. Optimized three readiness monitors not ready of Wuling SIM2K-51.4

FC200 V1.2.5.2  Registered Version (2025.01.18)

New Functions:
1. Added three ECUs with unready functions for domestic models:
Silver housing: ME17, ME17.8.8, MED17, MED17.8.10, MED17.8.2, MED17.8.21
Black housing (Black): ECU6.1, ME17, ME17.U.6, UP6
2. Added three ECUs with unready functions for Hyundai Kia: MEG17.9.12, MEG17.9.13, MEG17.9.2, MEG17.9.21, MEG17.9.8, ME17.9.1, ME17.9.11, ME17.9.11.1, ME17.9.21, ME17.9.21.1, MED17.9.30, MED17.9.8, EDC17CP14, ME17.9.8
3. Added Jinbei Lingdian ECU and supports VIN change and three unready functions: LINCONTROL LEC4A, LINCONTROL STC-213
4. Added Volkswagen Skoda ME7.5.20 three unready and VIN change functions
5. Chery ME7.9.7 added ExtFlash verification algorithm
6. Added Bosch ECU: UP6 TC1728, MED17.8.21, ME17.9.8
7. Added Huasong N20 model and supports VIN code change
8. Added BOSCH VIN change ECU: MEG17.9.13, ME17.9.1, EDC17CP48, EDC17C69, EDC17C83, ME17.3.0, EDC17C10, EDC17C58, ME17.0.3, EDC17C70

Bug fixes:
1. Fixed the issue of ME17/ME17.U.6/ECU6.1 failing to modify VIN
2. Optimized the verification algorithm of M7/ME7.8.8/M7.9.7/SIM2K-51.4
3. Fixed some bugs and optimized software performance

FC200 V1.2.5.1 Registered Version (2025.01.15)

New Functions:
1. Added Wuling SIM2K-51.4 read/write, VIN modification, and three unready functions
2. Added Jinbei Lingdian TR40 read/write, VIN modification, and three unready functions
3. Added three unready functions of Volkswagen ECUs: MED17.1.6, MED17.1, MED17.5, MED17.5.1, MED17.5.2, ME17.5.22, MED17.1.10, MED17.5.20, MED17.5.25, MED17.5.5, EDC17CP14
4. Added three unready functions of BMW N20/N55/B38/N13 ECUs: MEVD17.2.5, MEVD17.2.4, MEVD17.2.9, MEVD17.2.P, MEVD17.2, MEVD17.2.6, MEVD17.2.G, MEVD17.2.K, MEVD17.2.3
5. Added verification function ECUs: ME7, ME7.8.8, ME7.9.7, ME7.9.71, M7.9.7, M7.9.7.1, ME7.5.20

Bug fixes:
1. Fixed the problem of failure to write PFlash data in some ME17.9.64
2. Fixed the problem of failure to backup data of Honda Keihin KEIHIN series ECU
3. Fixed the problem of PFlash verification failure of Hyundai Kia CPGDSH2.26.1
4. Fixed the VIN code change function for ME17.9.1, ME17.9.11, ME17.3.0, and EDC17C81
5. Fixed some bugs and optimized software performance

FC200 V1.2.5.0 Registered Version New (2025.01.06)

New Functions:
1. Added the “Three readiness monitors not ready” function of GM E37E38E39E39AE78E80E83E84 ECU
2. Added MELCO (Mitsubishi) series BENCH mode ECU:
MELCO E6T6xxxx MH8501F
MELCO E6TAxxxx MPC5746R
MELCO E6T85xxx MH8601 test
MELCO E6T8xxxx MH8115 test
MELCO E6T7xxxx MH8611 test
MELCO E6T86xxx MH8115 test

3. Added BOSCH (Bosch) BENCH mode ECUTCU:
MG1CS080 TC275TP test
INVCON2.3 TC1797
HV17.4.1 TC1797

4. Added the “Repair of Lovol engine duration” of data processing to Lovol ECU: EDC17C63, EDC17CV54
5. Added the BOOT mode read and write function for GM E83
6. Added the function of reading and writing DFlash, PFlash, Maps, and ExtEEPROM separately for Mercedes-Benz SIM271DE
7. Added the “Unlock” function of VOLVO MB279700-96xx
8. Added “Read Password” function in Hyundai Kia CPEGP2.10.1 boot mode
9. Bug fixes
Optimized the “Turn off anti-theft” function of EDC17C53, EDC17C63, and EDC17C81
Optimized Porsche SDI10.x ECU wiring diagram
Fixed the problem that Mercedes-Benz CRD3P.C0 and CRD3P.D1 can not be read and written
Fixed the problem that DCM2.5 failed to write PFlash
Fixed the problem that M7 failed to recognize but can read and write
Fixed the problem that VGS2-FDTC failed to recognize after the updated version
Optimized the process of M7.9.7, M7.9.7.1, ME7.9.7, ME7.9.7.1 to handle the “Three readiness monitors not ready” function
Fixed the problem that Honda 37820 SH7058 does not communicate with ECU after writing data

CG FC200 V1.2.4.0 Registered Version New (2024.11.25)

1. Added Paypal payment function in non-simplified Chinese version
2. Added DELPHI BOOT mode ECU:
DCM6.2V MPC5674
DCM6.2A MPC5674
DCM6.2C MPC5674
DCM3.5 MPC5565
DCM6.1 TC1797

3. Added MARELLI BOOT mode ECU:
8TDW MPC5553
8TDF MPC5553 test
8GMF MPC5553 test
8F3 MPC5553 test
8DF MPC5553 test
8GMK SPC564A
8GML SPC564A test
8GSF MPC5565 test
8GMF MPC5565 test
8DF MPC5565 test
8F2 MPC5565 test
8F3 MPC5565 test
8GMW MPC5565 test
8GSW MPC5565 test
8DS MPC5565 test
9GF SPC564A test
9GC SPC564A test
9DF SPC5644 test
9DF_HW2 SPC5644 test
10GF SPC564A test
METATRON_MF4 MPC5674F test

4. New GM TCU: ACDelco T87A SPC564A, BOSCH T93 SPC5888

5. Other new ECUs:
CONTINENTAL SID605 SPC564A test (Boot mode)
BOSCH MED17.7.7 (Boot mode)
BOSCH EDC17CV54 (BENCH/Boot mode)
ACDelco E78 MPC5566 (Boot mode)

6. Other new features:
BOSCH EDC17CV54 adds VIN change function
M7, ME7.8.8 adds unlock function
Adds Volkswagen (WV) MED17.1, MED17.5.5 password reading method

7. Bug fixes
Optimized the main interface ECU search function
Solved the PFlash data encryption problem of M7, ME7.8.8
Fixed the MT86 PFlash reading and writing failure problem
Iveco BOSCH EDC17C69 ECU adds BENCH mode connection diagram

Optimized menus, wiring diagrams and other functions

CG FC200 V1.2.3.0 Registered Version (2024.10.19)

1. Added FC200 device binding function, after binding, you can get the latest news related to the device in time

2. Added DENSO SH72531 type ECU:
Nissan: 23740-5Sxxx_Gen2, 23740-3Nxxx_Gen1
Subaru: Subaru SH72531, 112800 SH72531

3. Added Honda KEIHIN type ECU:
Honda/Acura: KEIHIN 37820-xxx-xxx SH72543, KEIHIN 37820-Rxx-xxx SH7058, KEIHIN PGM FI SH7058

4. Added Volkswagen ECU mileage repair function:
MED17.5.25, ME17.5.22, MED17.1.27

5. Added PFlash checksum function for GM Exx ECU

6. Other newly added ECUs:
BOSCH MG1US008 (BENCH mode)
BOSCH MD1CE100 (BENCH mode)
Hyundai/Kia KEFICO CPEGP3.20.1 (BENCH mode)
Hyundai/Kia KEFICO CPEGP2.10.1 (Boot mode)
Hyundai/Kia CONTINENTAL SIM2K-240R (Boot mode)
GM AcDelco E84 (BENCH/Boot mode)
GM BOSCH ME9.6.1 (BENCH mode)

7. Bug fixes
Fixed the problem that Suzuki BOSCH ME17.9.64 BENCH mode cannot connect
Fixed the problem that GM E39A failed to read EEPROM
Fixed the problem that TATA DCM7.24 failed to checksum
Fixed the problem that TATA MD1CS018 failed to checksum
Fixed the problem that CPEGD2.20.x failed to checksum
Fixed GM E39/E39A checksum issue
Fixed Ford SID208/SID209 password reading failure issue
Fixed DCM6.2AP, GPEC2, etc. data writing failure issue

CG FC200 V1.2.2.0  Registered Version NEW (2024.09.11)

1. FC200 devices within the service period can use this function for free. Devices that are not within the service period will not be able to obtain authorization after the annual subscription fee expires (Except Boot Mode).
DELPHI ECU:
BYD/BAIC/Chery/Dongfeng/FAW/Geely/GreatWall/JAC/JMC/Lifan/MG/SAIC/Trumpchi:
ChinaDelphi MT20U MC912DT128
ChinaDelphi MT22U MC9S12XET256
ChinaDelphi MT20U2 MC9S12KG256
ChinaDelphi MT22.1 MC9S12XEQ512
ChinaDelphi MT22.1.1 MC9S12XET256
ChinaDelphi MT34 TCxx
ChinaDelphi MT80 TC1766
DELPHI DCM6.2AP MPC5674
DELPHI MT80 TC1766
DELPHI MT80.1 TC1766
DELPHI _DCM7.24_CHINA TC277T
DELPHI _DCM7.1AP_CHINA TC277T
DELPHI DCM3.7AP_CHINA SH72544

Indian AshokLeyland:
DELPHI _DCM7.1AP_AshokLeyland_test TC277T

Chevrolet/Luxgen:
DELPHI MT80 TC1766
DELPHI MT80.1 TC1766
DELPHI DCM3.7AP SH72544

Holden/Opel:
DELPHI DCM3.7AP SH72544

Citroen/DS/Opel/Peugeot/Toyota
DELPHI DCM7.1A TC297TP
DELPHI DCM7.1B TC297TP

Dodge/Freightliner:
DELPHI CRD2.x_ MPC556x
DELPHI CRD3xx TC1797

Hyundai/Kia:
DELPHI MT86 TC1766
DELPHI _DCM7.1AP_Hyundai TC277T

Mahindra/TATA/JCB:
DELPHI _DCM7.24_test TC277T
DELPHI DCM2.7AP SPC5644
DELPHI _DCM7.1AP_TATA TC277T
DELPHI DCM2.5 XC2080M

Benz:
DELPHI CRD2.x_ MPC556x
DELPHI CRD3xx TC1797
DELPHI CRD3xx TC1793
DELPHI CRD3.E1 TC1793
DELPHI CRD3.F1 TC1793
DELPHI CRD3E.1 TC1793
DELPHI CRD3P.B0 TC1793
DELPHI CRD3P.C0 TC1793
DELPHI CRD3P.D1 TC1793
DELPHI CRD3P.G0 TC1793
DELPHI CRD3 TC1797
DELPHI CRD3.7 TC1797
DELPHI CRD3.10 TC1797

2. FC200 devices within the service period can use this function for free. Devices that are not within the service period will not be able to obtain authorization after the annual subscription fee expires — DENSO ECU:

Isuzu/Hino:
DENSO 275700_7082 SH72546(Test)

Mitsubishi:
DENSO MITSUBISHI_L200 SH72543(Test)
DENSO 4D56 SH7059(Test)
DENSO RA6 SH7059(Test)
DENSO 4N14 SH7059(Test)

Fiat:
DENSO RA6 SH7059(Test)

Nissan:
DENSO D3 SH7059(Test)
DENSO D4B SH7059(Test)
DENSO D40 SH7059(Test)
DENSO 3W SH7059(Test)
DENSO 23740_5Sxxx_Gen2 SH72530(Test)
DENSO G1 SH7059(Test)
DENSO 1G SH7059(Test)
DENSO H1 SH7059(Test)
DENSO Pxxx SH72543

Opel/Vauxhall:
DENSO 275xxx-xxx SH7059(Test)
DENSO GM SH7055(Test)

Subaru:
DENSO KH SH7059(Test)
DENSO KS SH7059(Test)
DENSO ZY SH7059(Test)
DENSO BF SH7059(Test)
DENSO GG SH7059(Test)
DENSO NN SH7059(Test)
DENSO KO SH7059(Test)
DENSO MB112700 SH72543(Test)
DENSO Subaru SH72543(Test)

FAW:
DENSO TD112700-xxxx SH72530

Hyundai/Kia:
DENSO 33910-05005 SH72530

Mazda:
DENSO R2xx SH7058
DENSO RF7x SH7058
DENSO RF8x SH7058
DENSO Pxxx SH72543
DENSO S5xx SH72546
DENSO SHxx SH72543

Scion:
DENSO Pxxx SH72543

Suzuki:
DENSO 33920-67P0 SH72530
DENSO 33920-xxxx_1N83 MPC5746

Toyota:
DENSO GEN3 R7F701216
DENSO GEN3 R7F701202
DENSO Pxxx SH72543

Volvo
DENSO MB279700-9500 SH72543
DENSO MB279700-96xx SH72546
DENSO MB279700-9811 SH72546
DENSO MB279700-9801 SH72546

Others
BOSCH MED9.6.1 MPC561/2
CONTINENTAL SIM2K_241_ECU TC1767
BOSCH Hongqi_H9_48V_Battery TC1724
KEFICO CPEBI2.20.2 TC1782

4. MSV80 Added a new button to read password
5. GM Exx/6T/L ECU/TCU of vehicle models optimized connection identification function
6. Fixed the issue of GM E80 connection failure
7. CONTINENTAL SID208, SID209 Added the function of reading password

CG FC200 V1.2.1.0 Registered Version (2024.06.25)

1. Added China DELPHI ECU, supporting OBD and BENCH modes:
MT20U MC912DT128
MT22U MC9S12XET256
MT20U2 MC9S12KG256
MT22.1 MC9S12XEQ512
MT22.1.1 MC9S12XET256

2. Added DELPHI ECU:
BENCH mode:
China DCM7.24
China DCM7.1AP
Hyundai/Kia DCM7.1AP
Tata DCM2.5
BOOT mode:
DCM2.7AP

3. Added DENSO ECU:
Toyota:
GEN3 R7F701202
GEN3 R7F701216
Mazda:
Pxxx SH72543
S5xx SH72546
SHxx SH72543
Suzuki:
33920-xxxx_1N83 MPC5746

4. Add PFlash verification function to Denso ECU
5. Add PFlash/ExtFlash verification function to BOSCH MPC5xx ECU
6. Optimize Flash verification function for BOSCH MG1/MD1 ECU

CG FC200 V1.2.0.0  Registered Version NEW (2024.05.11)

1. Added CONTINEN type ECU: SID209, SIM2K-341 (ECU)
2. Optimize the verification function of BOSCH/CONTINENTAL/KEFICO/DELPHI TC17 ECUs
3.MED17_China adds a new password reading function
4. Added BOSCH TC17 ECUs: MINI: MED17.2.2, Ford/MB: DCU17PC01, Hyundai: DCU24, Peugeot:
ME17.9.53, BOBCAT: EDC17C87, McLaren: ME17.8.33

5. Added Renesas chip ECU:
Honda: KEIHIN 37820-xxx-xxx SH7058, DELPHI DCM3.7AP_CHINA SH72544
FAW: DENSO TD112700-xxxx SH72530
Hyundai: DENSO 33910-05005 adds the function of reading DFlash

6. Added Delphi TC2xx ECU: DCM7.1A/DCM7.1B

Functions of Each Adapter:

1. MSV90 Adapter:
This adapter supports ISN reading and writing and data backup and recovery of BMW MSV90

2. N20 Adapter:
This adapter supports ISN reading and writing, VIN modification and data reading and writing functions of the N20 and N13 of the F series chassis of BMW

3. B48/B58 Adapter:
This adapter supports ISN reading and data reading and writing functions of BMW models: MG1CS003, MG1CS024 and MG1CS201.

4. 271KE Adapter & 271DE Adapter:
These two adapters support the data backup and recovery functions of Mercedes-Benz SIM 271KE and SIM 271DE

5. 6HP & 8HP Adapter:
The adapter is used for the data backup and recovery function of the 6HP and 8HP EGS of BMW models.

FC200-MPC5XX-P02-M230102 Adapter for BOSCH MPC5xx Read/Write Data on Bench

Description:
CG FC200-MPC5XX-P02-M230102 adapter can be used for MPC5X series clone without opening cover.

Product Functions:
Supported ECU Models: ME9.0, MED9.1, MED9.5.10, EDC16C2, EDC16CB, EDC16CP31, EDC16CP35. More models are being upgraded.

Product Features:

Adaptation without disassembly
Stable and safe
Function extension
Data loss prevention
Real-time monitoring
Solid connection

Package List:

1pc x CGDI FC200 Host
1pc x OBD Cable
1pc x Jumper
1pc x USB Cable
6pcs x G-type Adapter Cable
3pcs x F-type Adapter Cable
6pcs x E-type Adapter Cable
6pcs x D-type Adapter Cable
6pcs x C-type Adapter Cable
6pcs x B-type Adapter Cable

FC200 Adapter Set
including: 6HP & 8HP, MSV90, N55, N20, B48/B58, B38, 271KE Adaper, 271DE Adapter

1pc x CG FC200-MPC5XX-P02-M230102 Adapter

sales@obdstars.com
