JDiag M100 Full Version Moto Scanner for Hartford, Aeon, Honda, SYM, Yamaha, Suzuki, Kymco, Kawasaki, Piaggio, PGO, KTM etc.

Name: JDiag M100 Full Version Moto Scanner for Hartford, Aeon, Honda, SYM, Yamaha, Suzuki, Kymco, Kawasaki, Piaggio, PGO, KTM etc.
SKU: HKSC552-C
Availability: InStock

JDiag M100 Full Version Moto Scanner Universal Motorcycle Scan Tool.M100 Moto Scanner is the new generation Handheld Motorcyle diagnostics tool, it covers virtually all major manufacturers’ diagnostic functions. It helps the technician to diagnose problems and make repairs faster, many common procedures are written into the tool so the technician can follow them (injectors, ignition, coils, fuel pump, etc.).

SKU: HKSC552-C

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

$179.00

100 in stock

Compare

Add to wishlist

20 People watching this product now!

Pick up from the Woodmart Store

To pick up today

Free

Courier delivery

Our courier will deliver to the specified address

2-3 Days

Free

DHL Courier delivery

DHL courier will deliver to the specified address

1-3 Days

Free

Warranty 1 year

More details

Free 30-Day returns

More details

Payment Methods:

Description

JDiag M100 Full Version Moto Scanner Universal Motorcycle Scan Tool

M100 Moto Scanner is the new generation Handheld Motorcyle diagnostics tool, it covers virtually all major manufacturers’ diagnostic functions. It helps the technician to diagnose problems and make repairs faster, many common procedures are written into the tool so the technician can follow them (injectors, ignition, coils, fuel pump, etc.).

It allows the technician to perform factory service procedures such as re-setting the service light, unlocking the immobilizer and configuring the immobilizer/alarm, making injection adjustments (CO Trimmer), adjusting the throttle valve position sensor(TPS),re-setting auto adaptive parameters, and making idling adjustments.

The tool shows live data, displays ECU data, reads stored faults(history) or live data (RPM, battery voltage, throttle angle).

Product Features:

1. Handheld operation, convenient and flexible to use

2. Support for SD cards to store data and upgrades,

3. Reserved CAN bus interface

4. 3.2-inch color screen, clear display.

5. Dynamic data with numerical and waveform.

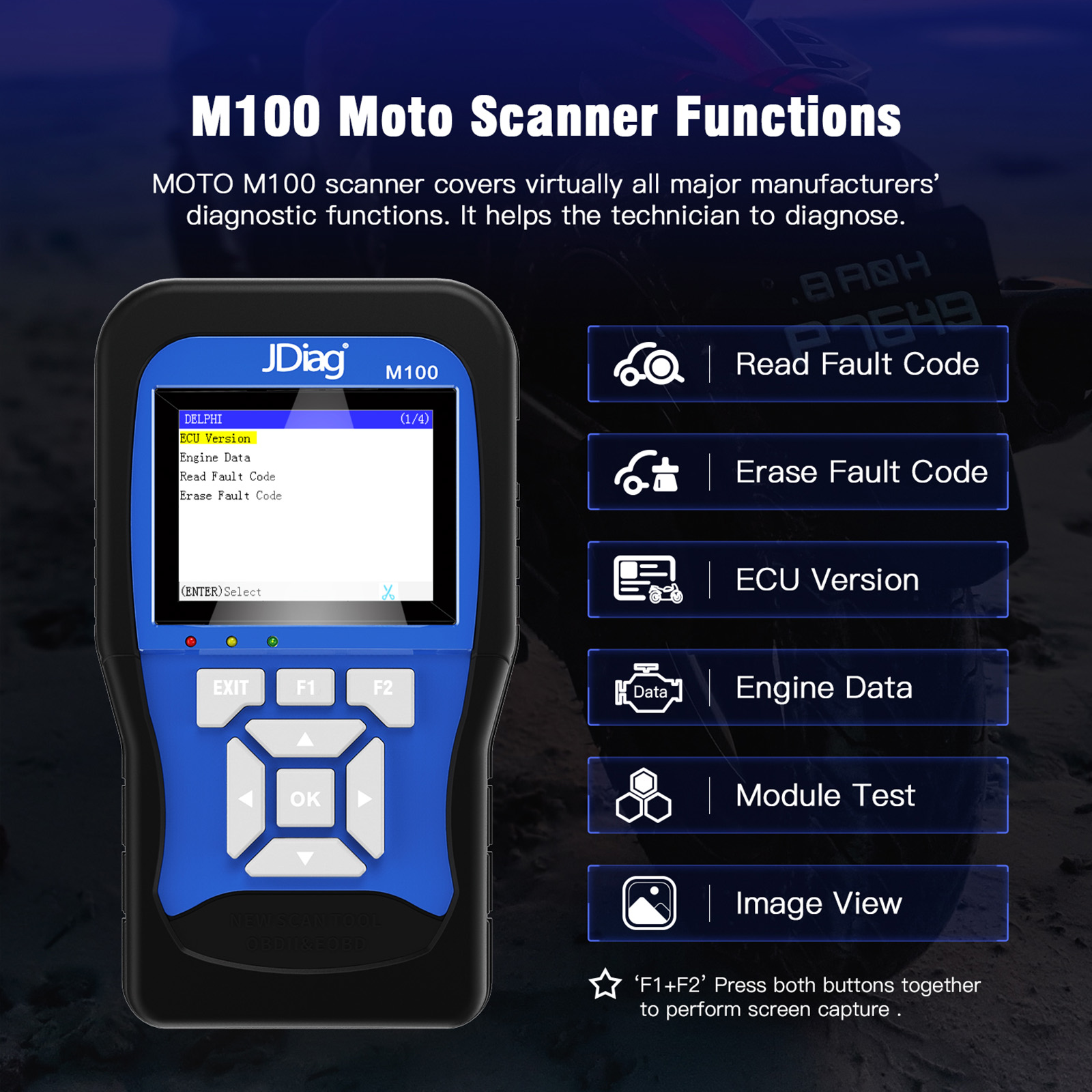

Product Function:

1. Read system information

2. Read data stream

3. Read fault code

4. Erase fault code

5. Freeze data

6. CO idle speed adjustment

7. ABS system test

Support Motorcycle list: Hartford, Aeon, Honda, SYM, Yamaha,Suzuki,Kymco,Kawasaki,Piaggio,PGO,KTM, etc

Supports multiple languages: English,Chinese,Traditional,Spanish,French,Cambodian,Thai, Turkish,Vietnamese,Indonesian,Portuguese, Japanese,Korean,German.

Product Specifications:

Power: DC10-15V

Operating Current: 250mA

Storage temperature: -10 C to 85 C

Operating temperature: 0 C to 70 C

Humidity: <90%

Upgrade Ports: USB port

Communication ports: COM port

Package includes:

1pc x Scan Tool main unit

1pc x MOTO-13 cable

1pc x MOTO-12 cable
