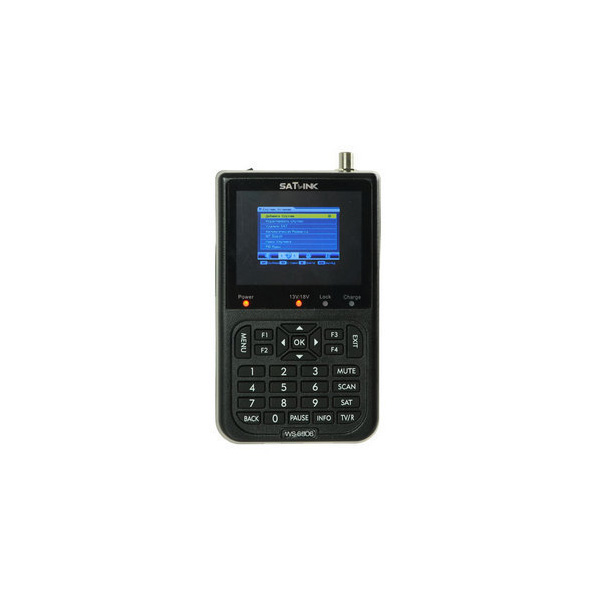

SATlink WS-6906 Professional Digital Satellite Signal Finder Meter
This WS-6906 handheld satellite alignment meter is very convenient for installer to catch quick and accurate Alignment for Antenna to the best position. With this finder, you can set and align a satellite dish quickly, easily and accurately, and enjoy watching the free channels!
Features: High quality and stable
Performance:
it’s with a microprocessor controller. 3.5″ LCD color display, bigger menu window. Channel picture, signal strength and signal quality can be showed on LCD Screen after you set up your local DVB-S Parameter.
It’s with auto-protection for LNB short-circuit. It shows Azimuth and Elevation, CBER/VBER, S/N, signal strength and signal lock sound alarm. Supports both AV IN and AV OUT for camera, LCD, etc. Built-in large capacity 3000mAH Li-ion battery. Matched with a protective bag for easier outdoor using.
Support language:
English, German, French, Portuguese, Spanish, Italian, Dutch, Polish, Turkish. English user manual is included in the CD disk.
Specifications:
System capabilities Fully DVB-S comliant Yes LNB/Tuner input Connector F type female Frequency range 950MHz-2150MHz
Signal level -65dBm~-25dBm LNB power 13/18V, max 350mA LNB Switch control 22KHz DiSEqC Ver 1.0/1.2 Demodulator Front end QPSK Demodulation Range 2Mbps~45Mbps
SCPC and MCPC capable Yes
System resource Processor 32bit
processor (133MHz) SDRAM 4 * 16Mbyte
FLASH 8Mbyte Video decoder MPEG2
Main Profile @ Main Level Data Rate up to 15Mbits/s Resolution 720 * 576, 720 * 480
Video Format PAL/NTSC/SECAM MPEG Audio MPEG MPEG 1&2 Type
Mono Sampling rates 32, 44.1 and 48KHz
Data Tranfer Connector USB
type Power supply Li-ion Battery 8.4V/3000mAH
Input AC 100-240V 50/60Hz
Output DC 12V Plug Standard EU Item size: 16.5 * 9 * 4.5cm
