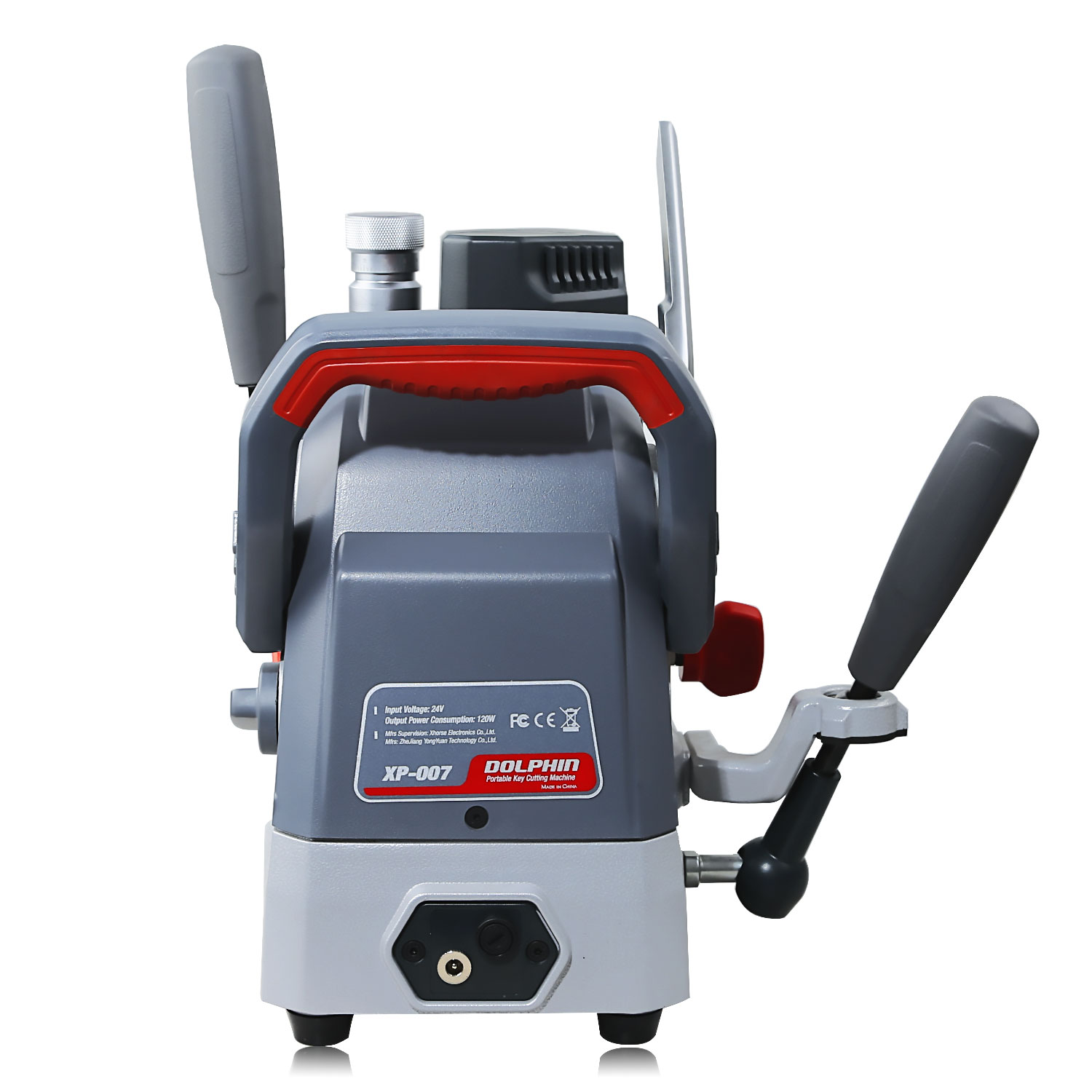

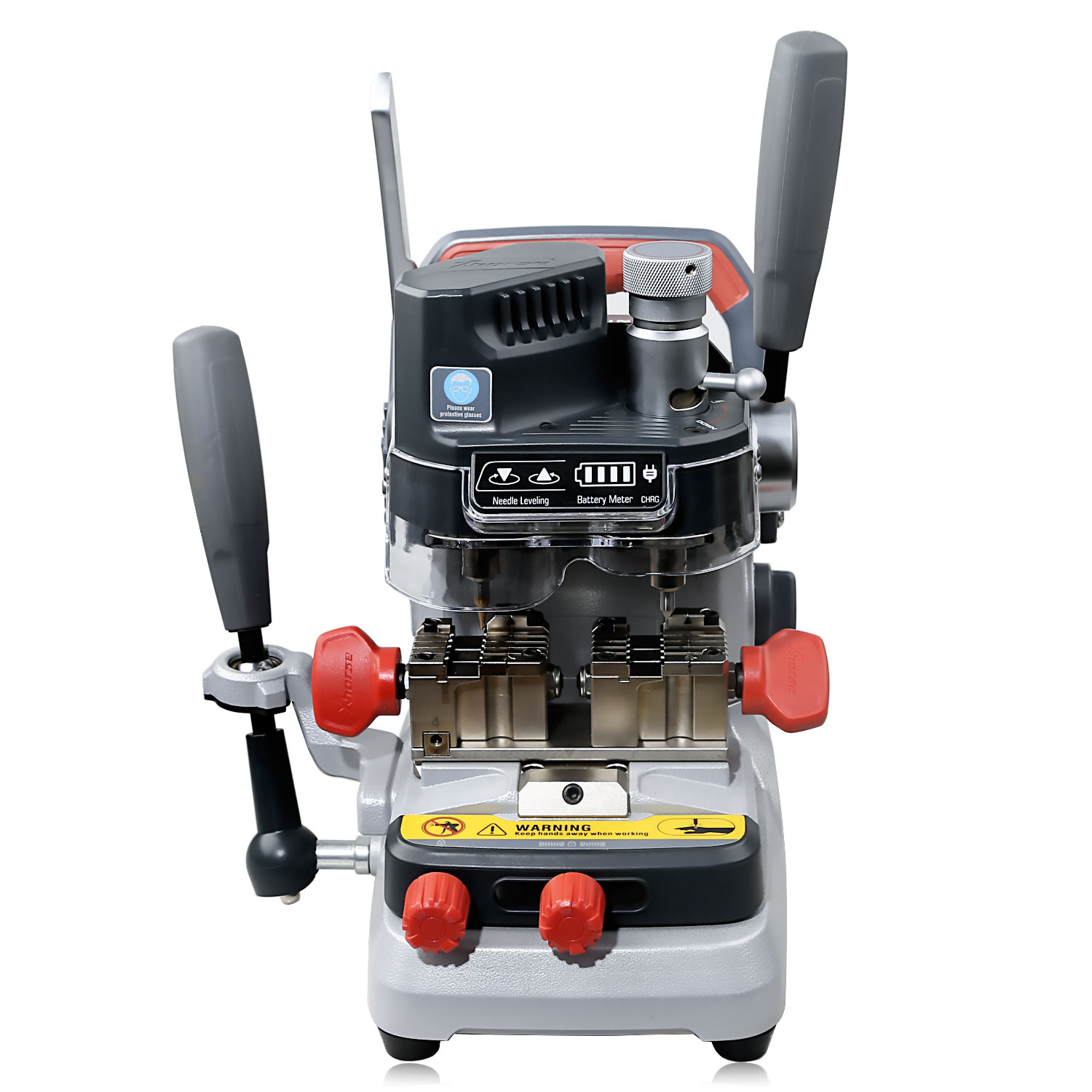

Xhorse Dolphin XP-007 XP007 Manually Key Cutting Machine for Laser/Dimple/Flat Keys

What are the advantages of Xhorse Dolphin XP-007?

Smaller and lighter. Condor Dolphin XP-007 is 14KG only.
Dolphin XP-007 with better price.
More powerful function.
With Built-in Lithium Battery. (Optimized lithium battery of well-known brand, stable and reliable, support cutting under no power conditions.)

Xhorse Dolphin XP007 Function Characteristics:

Professional Design
Attractive appearance, small and portable, ergonomic control design

Precision Production
All aluminum body structure, Manufactured by Germany-made DMG CNC machine

High Efficiency Cutting

120W DC brushless motor, designed 2 switches for adjustment speed, high efficiency cutting, support multiple materials of the key blank.

Precision Cutting
With micro-adjust probe, Spring preloading type fine-tuning structure, ensure cutting accuracy；With this structure it can position the original key in advance, in case the spring vibrating caused cutting error, good for accuracy

Built-in Lithium Battery
Optimized lithium battery of well-known brand, stable and reliable, support cutting under no power conditions

Clamps
Standard equipped multifunction clamp, support Sided, Track, Dimple and Tibbe keys

Technical service
One year warranty, free technical support, online service to provide remote control support

Xhorse Dolphin XP007 Workable Car Key Type:


Key Type	Schema	Clamp Side	Illustration
2 Track External		A/B	1.The key type available for side A and D are the same,please make the selection according to the cutting depth 2.When cutting dimple key,please use the specific cutter.
		A/C
4 Track External		A/D
		A/D
Channel Track		A/D
		A/B
		A/C
4 Track Internal		A/D
Dimple		A/D

Product Function:

Cutting different kinds of keys:

Can cut flat keys for bikes/car
Can cut laser keys
Can cut dimple keys

High Cutting Efficiency:

120W DC brushless motor, designed 2 switches for speed adjustment, high efficiency cutting, support the key blank. of multiple materials.

Precise Cutting:

With micro-adjust probe, spring preloading type fine-tuning structure, ensure cutting accuracy; With this structure it can position the original key in advance, in case the spring vibrating caused cutting error, good for cutting accuracy

Product Comparison Between XP-007 and XC-002


Model	XP-007	XC-002
Weight	14KG	28KG
Warranty	1 Year	1 Year
Battery	Built-in Lithium Battery，Optimized lithium battery of well-known brand, stable and reliable	Built-in Battery
Clamp	Standard equipped multi-function clamp, support Sided, Track & Dimple keys	Four in one clamp
Cutting Speed	120W DC brushless motor, designed 2  switches for adjustment speed	max speed 10000RPM, Supports setting speed manually

Xhorse Dolphin XP007 Specifications:

Charging Voltage:                          12-18V
Battery Capacity:                            64.75Wh

Consumption:                                120W
Main motor speed:                        Highest:13000 RPM switch 1：7000 RPM switch 2：10000 RPM
Rated Torque:                                Switch 1:0.12 N.M   Switch 2:0.16 N.M
Travel of Spindle:                           25mm
Table Travel:                                   Transverse 36mm  Portrait 48mm
Working temperature:                   0-50℃
Working Humidity:                        0-90%
Net Weight:                                   11.5Kg
Gross Weight:                                14Kg
Machine Dimension:                      282*246.5*355mm
Package Dimension:                      365*325*350,mm

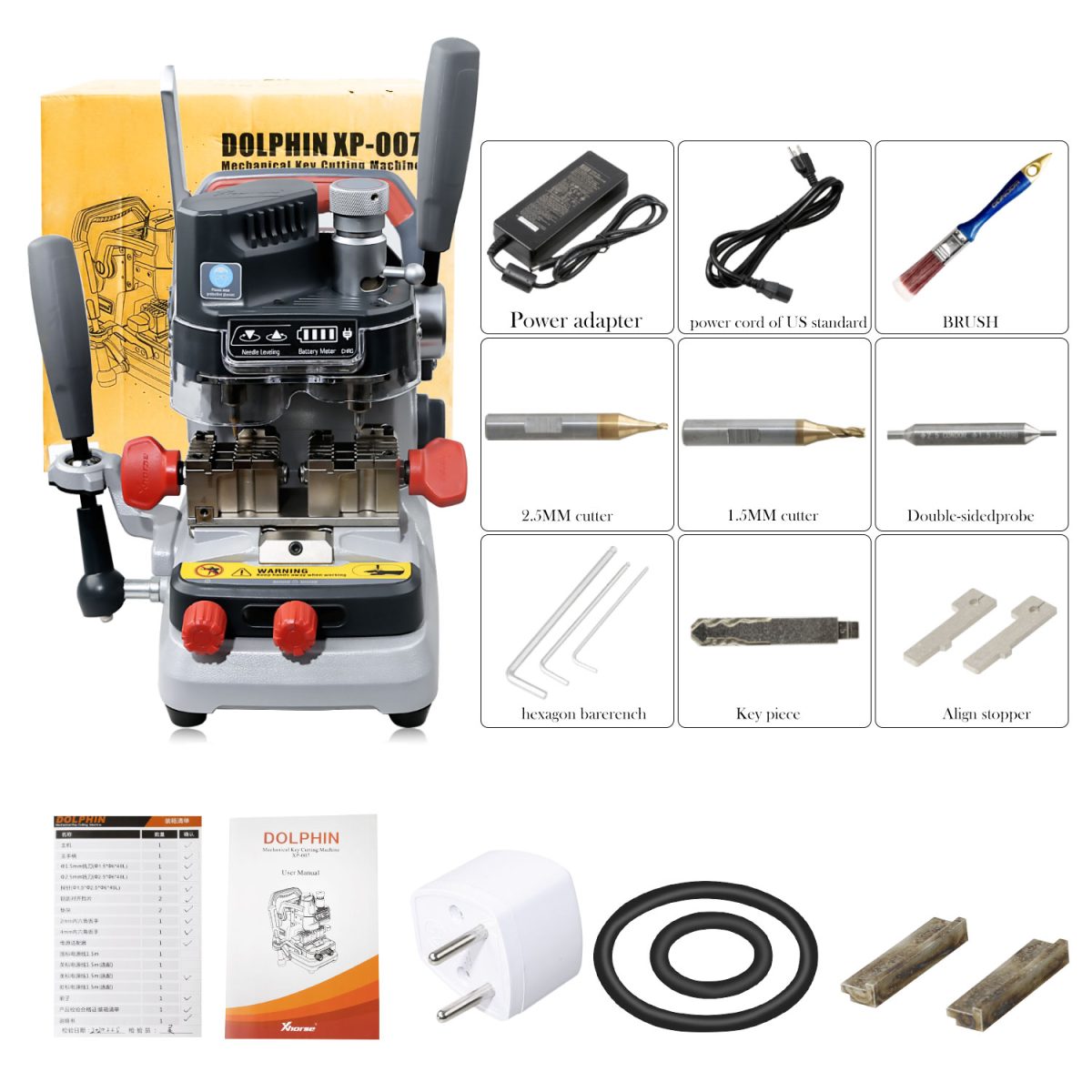

Package Includes:

1pc x Dolphin XP007 main unit
1pc x .Power cord
1pc x Brush
1pc x 4.2.5MM cutter
1pc x 1.5MM cutter
1pc x Double-sided probe
1pc x hexagon Barerench
1pc x Key Piece
1pc x Align stopper
