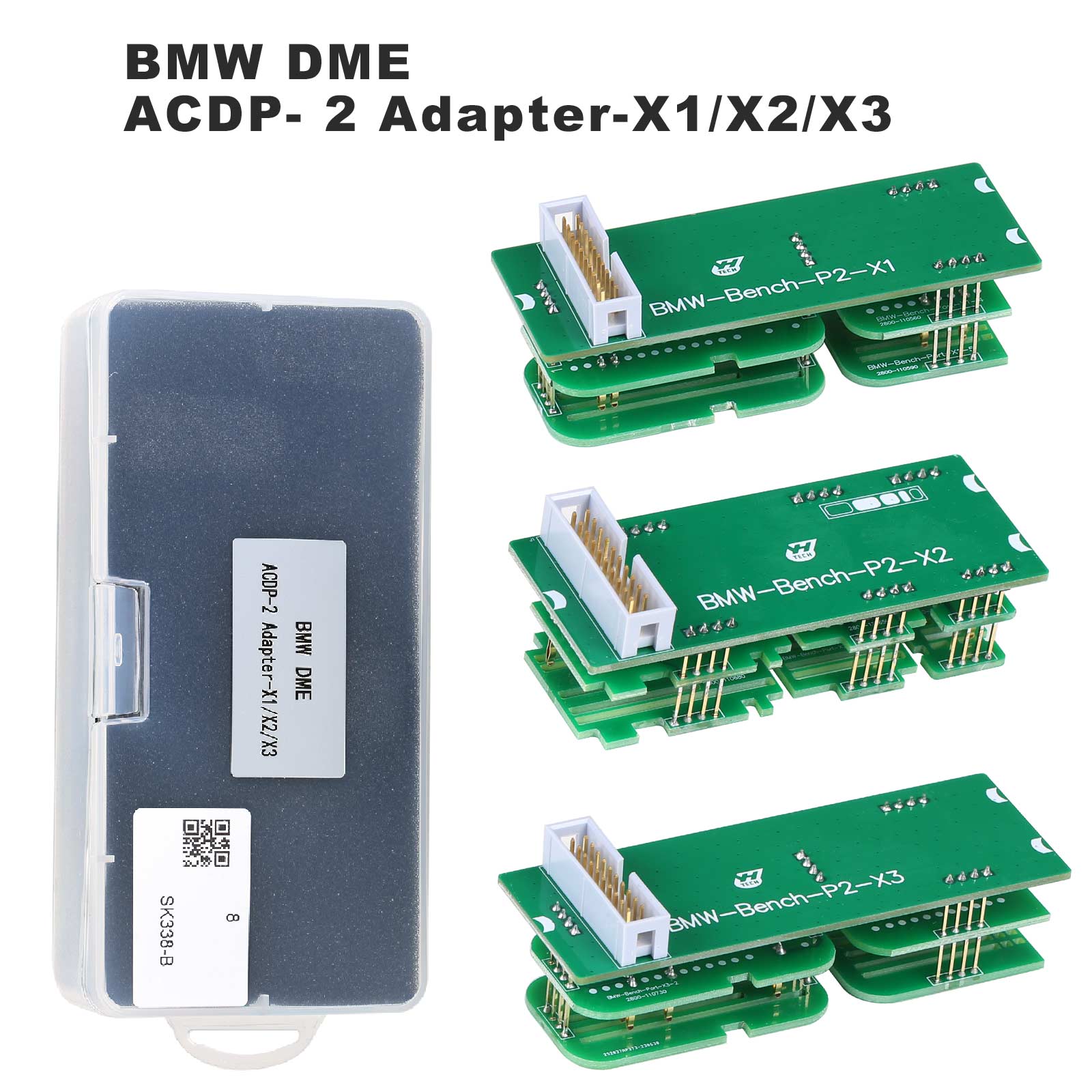

Yanhua Bench Mode BMW-DME-Adapter x1/x2/x3 Interface Board Set work with ACDP-2
Functions:
1: Support BMW E chassis N47 / N57 DME ISN Read /Write and clone.
2: Support BMW F chassis B37 1 B47 / N47 1 N57 DME ISN Read/Write and clone.
3: Support BMW I chassis BMSX (ÐœE172) DME ISN Read /Write and clone.
Advantage:
1: No need to open DME shell, no need to drill hole on DME,no need to plug wire.
2: The special interface board connection method replaces the traditional plugging wire method to prevent plug wire to opposite direction and wrong place, simple and efficient, plugand play, safe and reliable.
Notice:
Read ISN need buy Module 3 authorization
ECU Clone need buy ECU Clone authorization
Yanhua ACDP-2 BMW X1/X2/X3 Bench Interface Board Support List:
| Interface board type | Exx | Fxx | Gxx | Rxx | Ixx |
| BMW-DME-ADAPTER X1 | N47(ECD17C50) | B37(ECD17C50) | B37(ECD17C50) | ||
| B47(EDC17C50) | B47(ECD17C50) | ||||
| B47(EDC17CP49) | N47(EDC17C50) | ||||
| N47(ECD17C50) | |||||
| N47(ECD17C76) | |||||
| N57(ECD17C76) | |||||
| N57(ECD17C56) | |||||
| N57(ECD17CP49) | |||||
| BMW-DME-ADAPTER X2 | N47(ECD17C41) | N47(ECD17C41) | N47(ECD17C41) | ||
| N57(ECD17CP45) | N47(ECD17CP45) | ||||
| N57(ECD17CP45) | |||||
| BMW-DME-ADAPTER X3 | BMSX(ME172) |

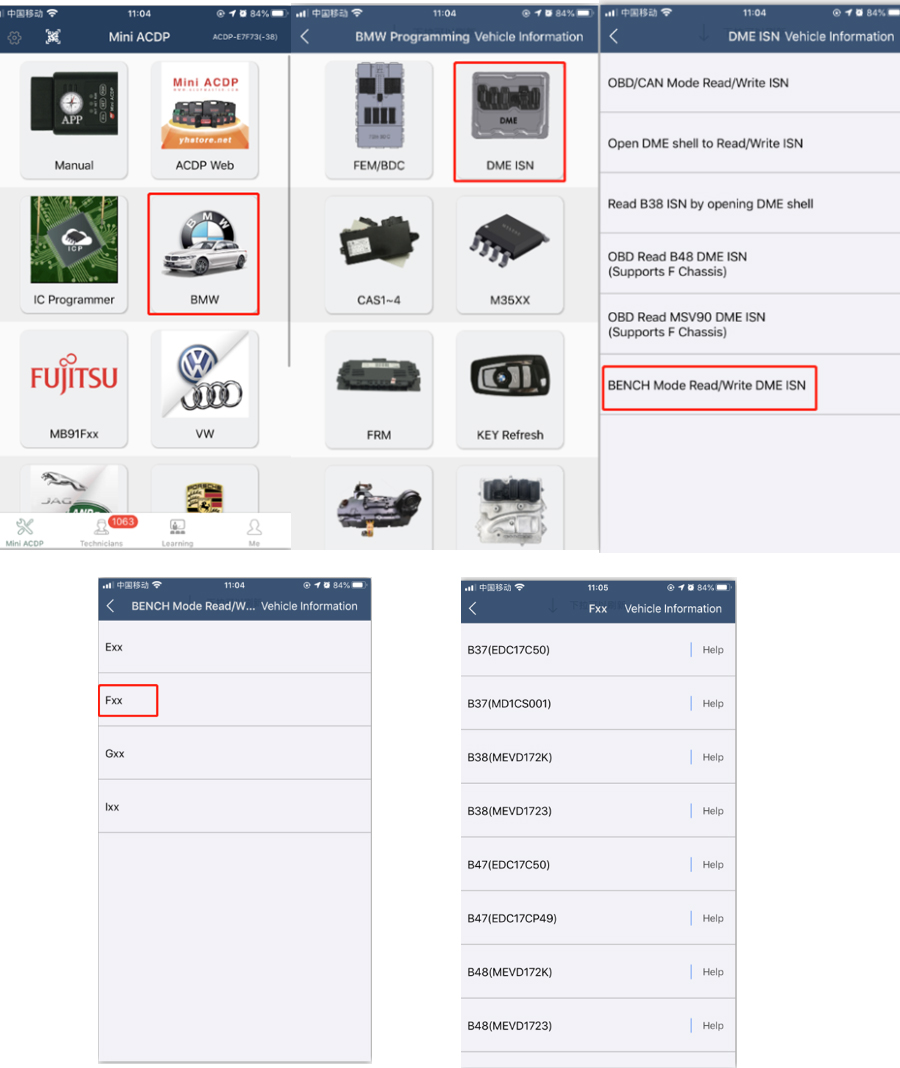

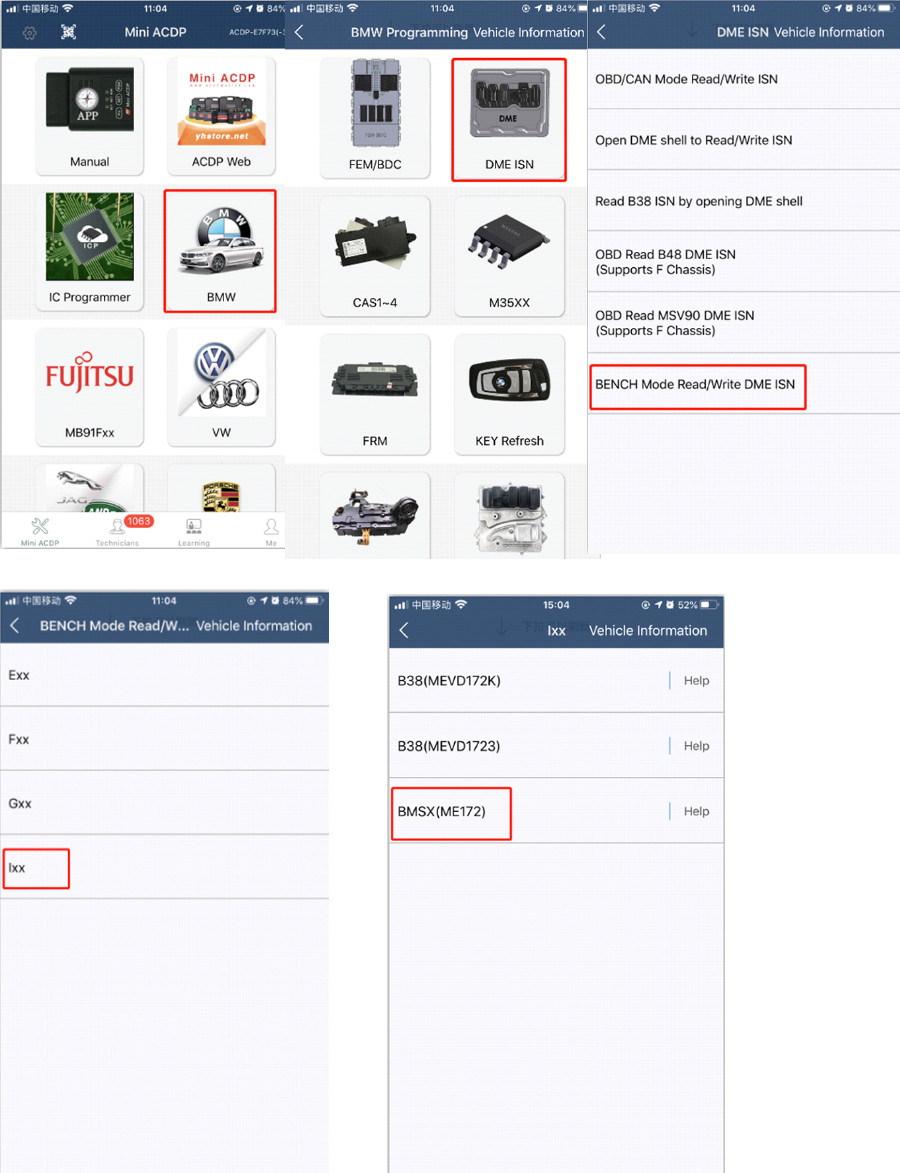

Screen of ISN read/write:
Functions:
1:Support BMW E chassis N47 DME ISN Read /Write and clone.
2: Support BMW F chassis B37 / B47 / N47 / N57 DME ISN Read /Write and clone.
Advantage:
1:No need to open DME shell, no need to drill hole on DME, no need to plug wire.
2:The special interface board connection method replaces the traditional plugging wire method to prevent plug wire to opposite direction and wrong place, simple and efficient, plug and play, safe and reliable.

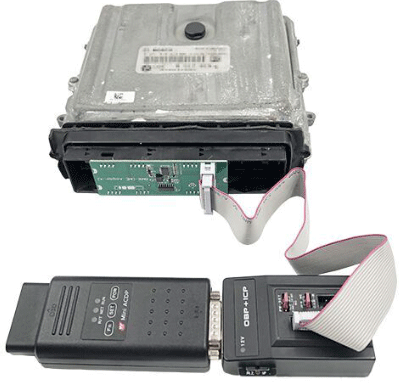

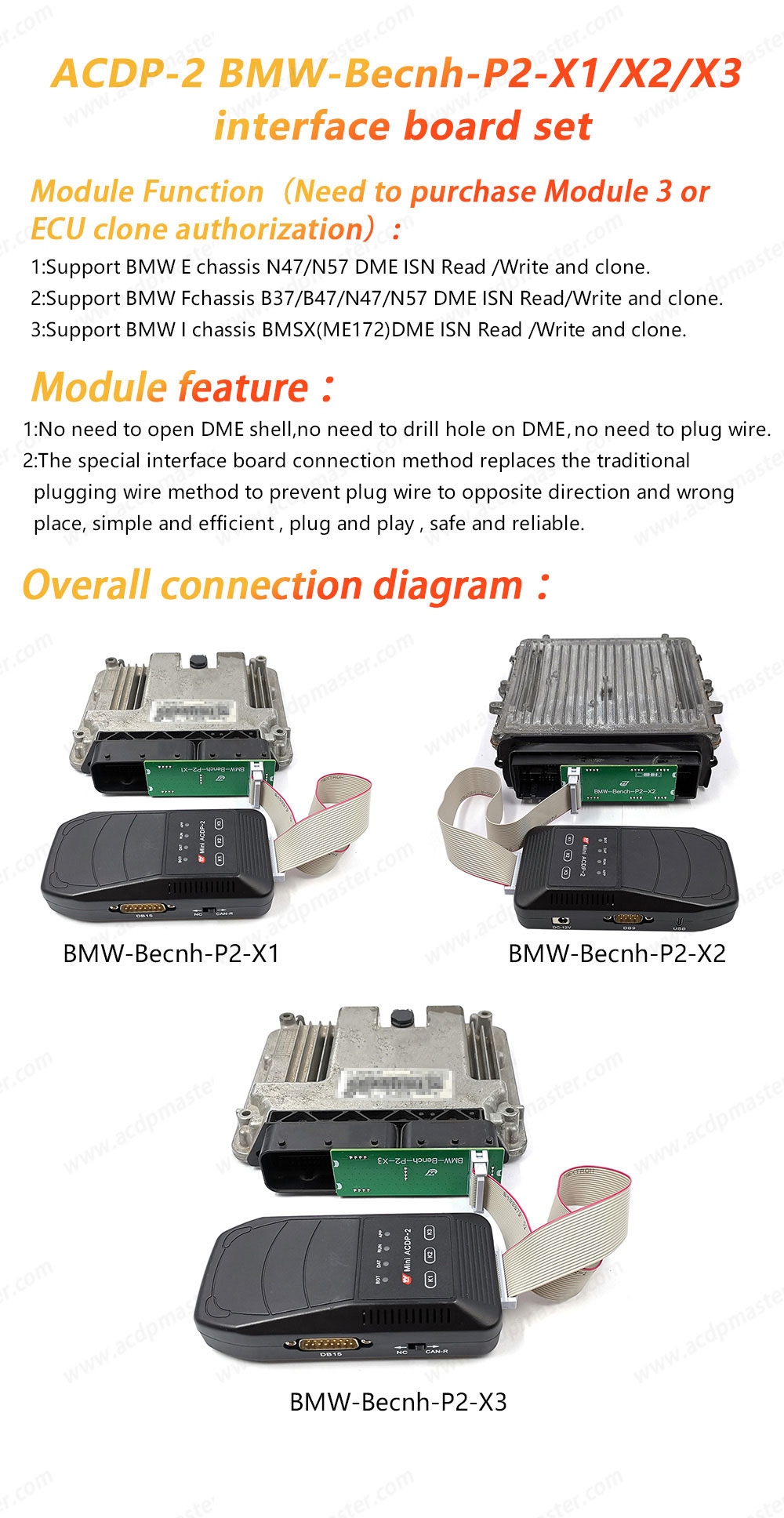

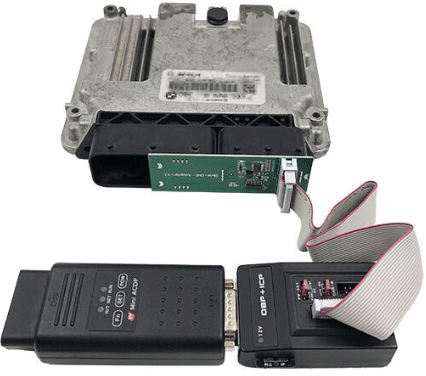

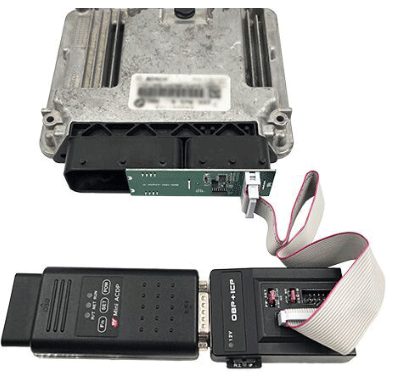

Overall connection diagram:

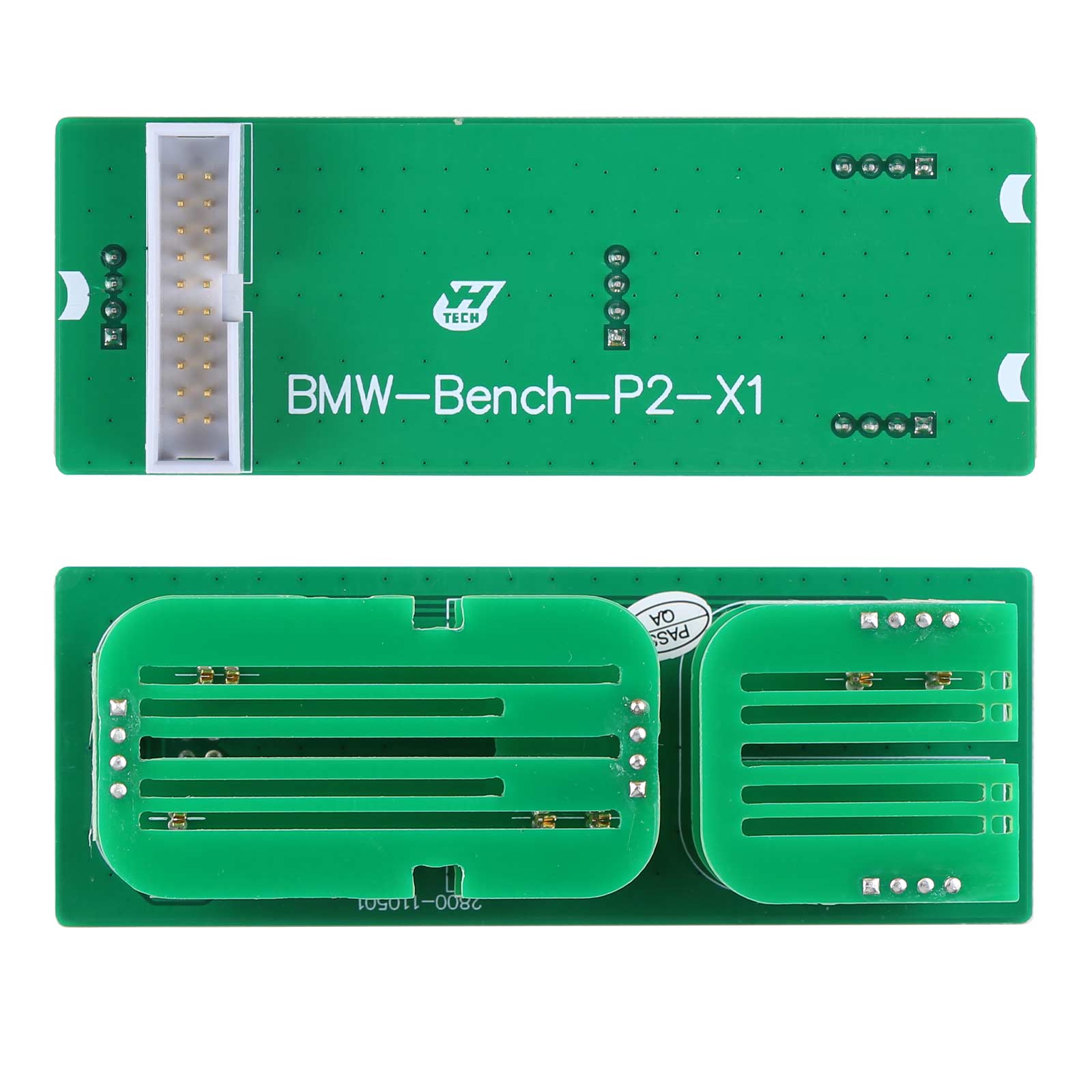

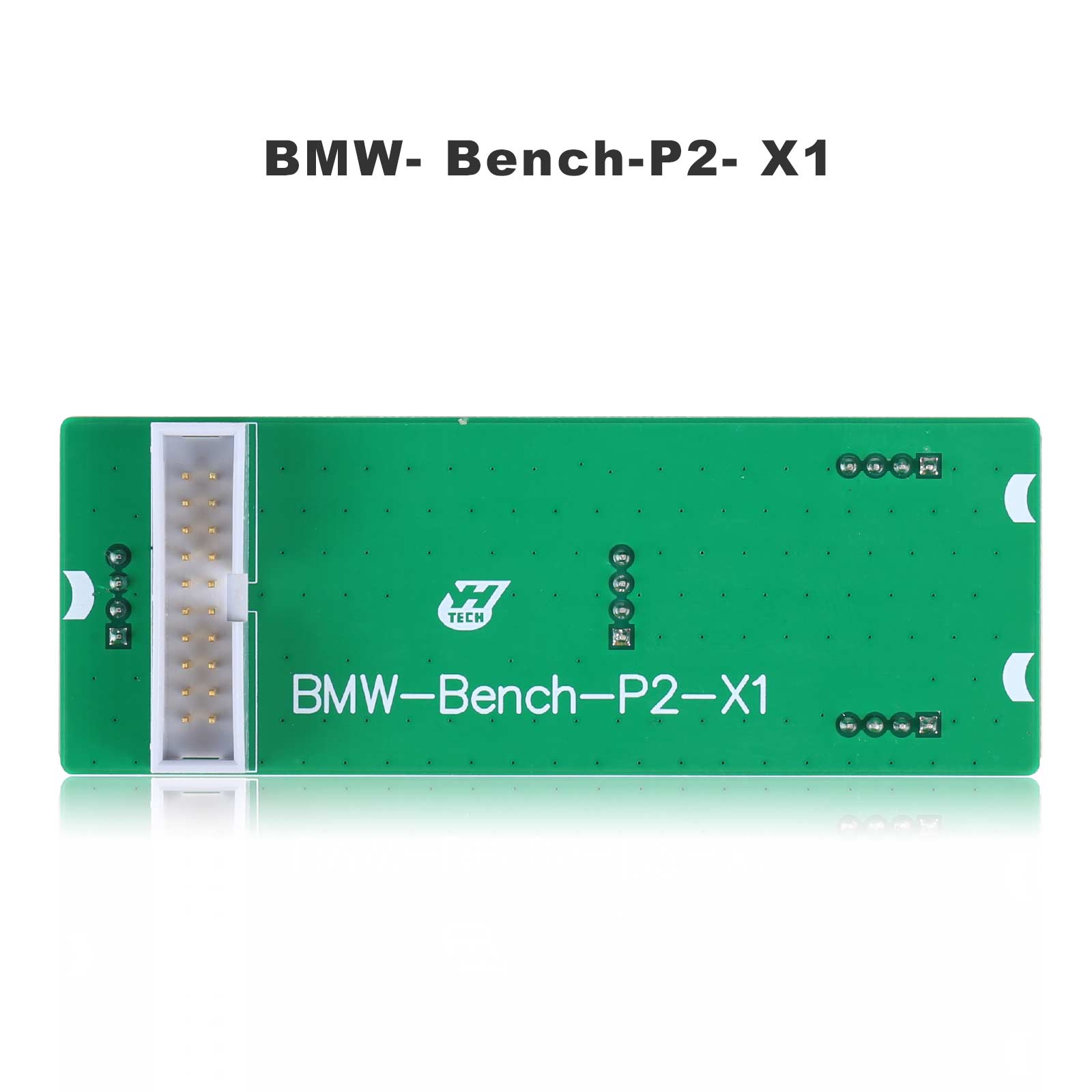

BMW-DME- Adapter X1

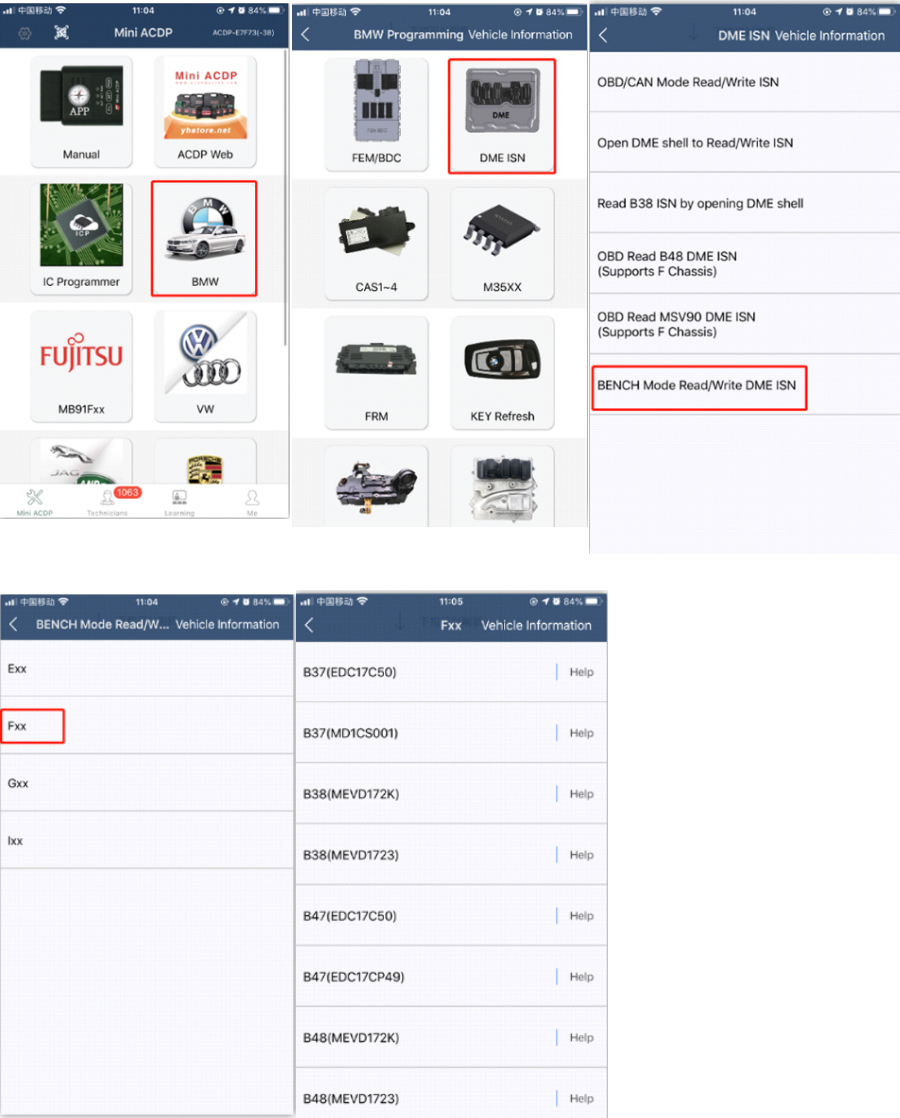

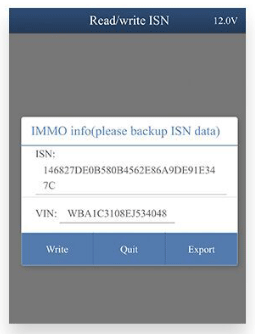

Screen of ISN read/write:

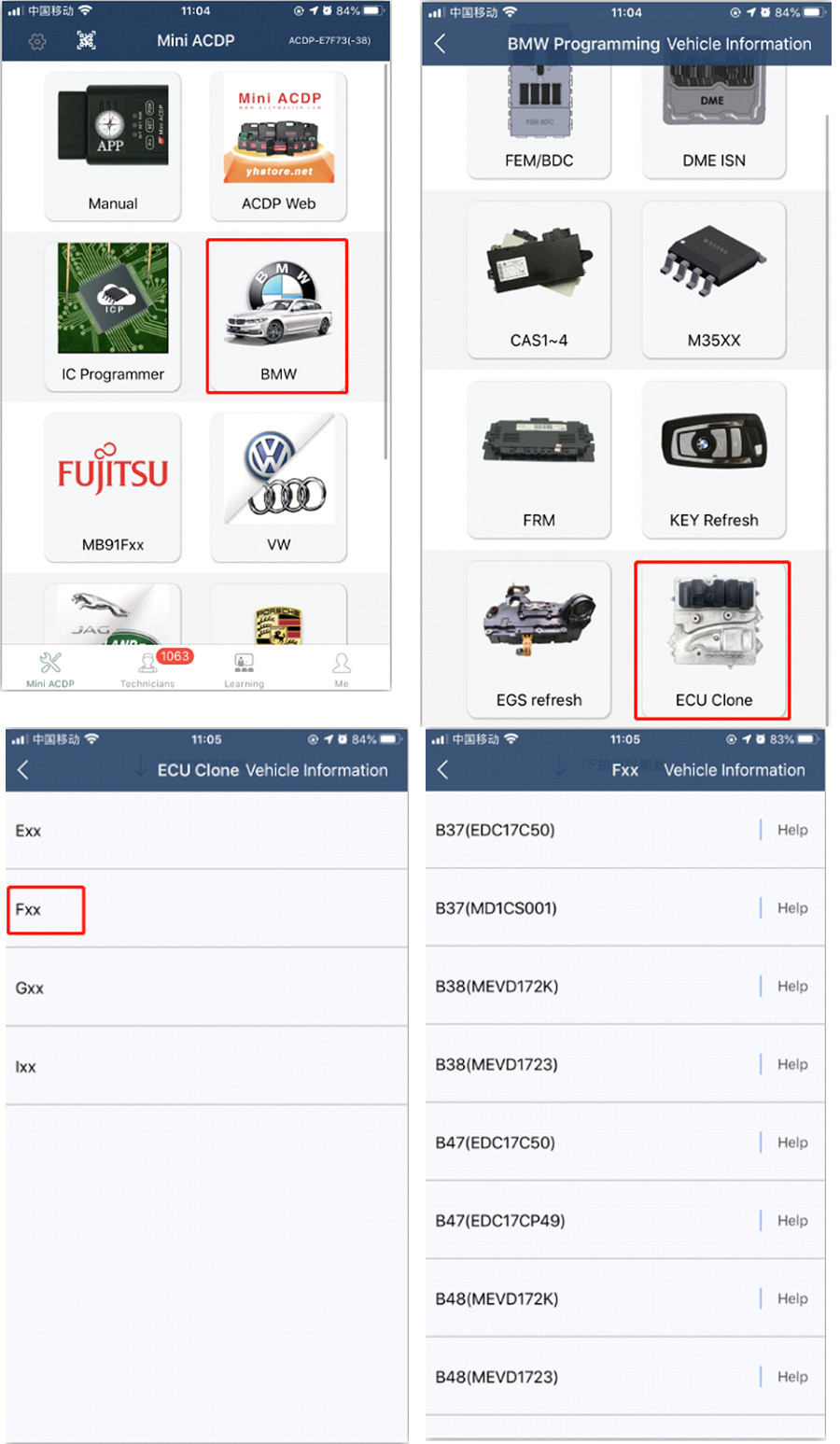

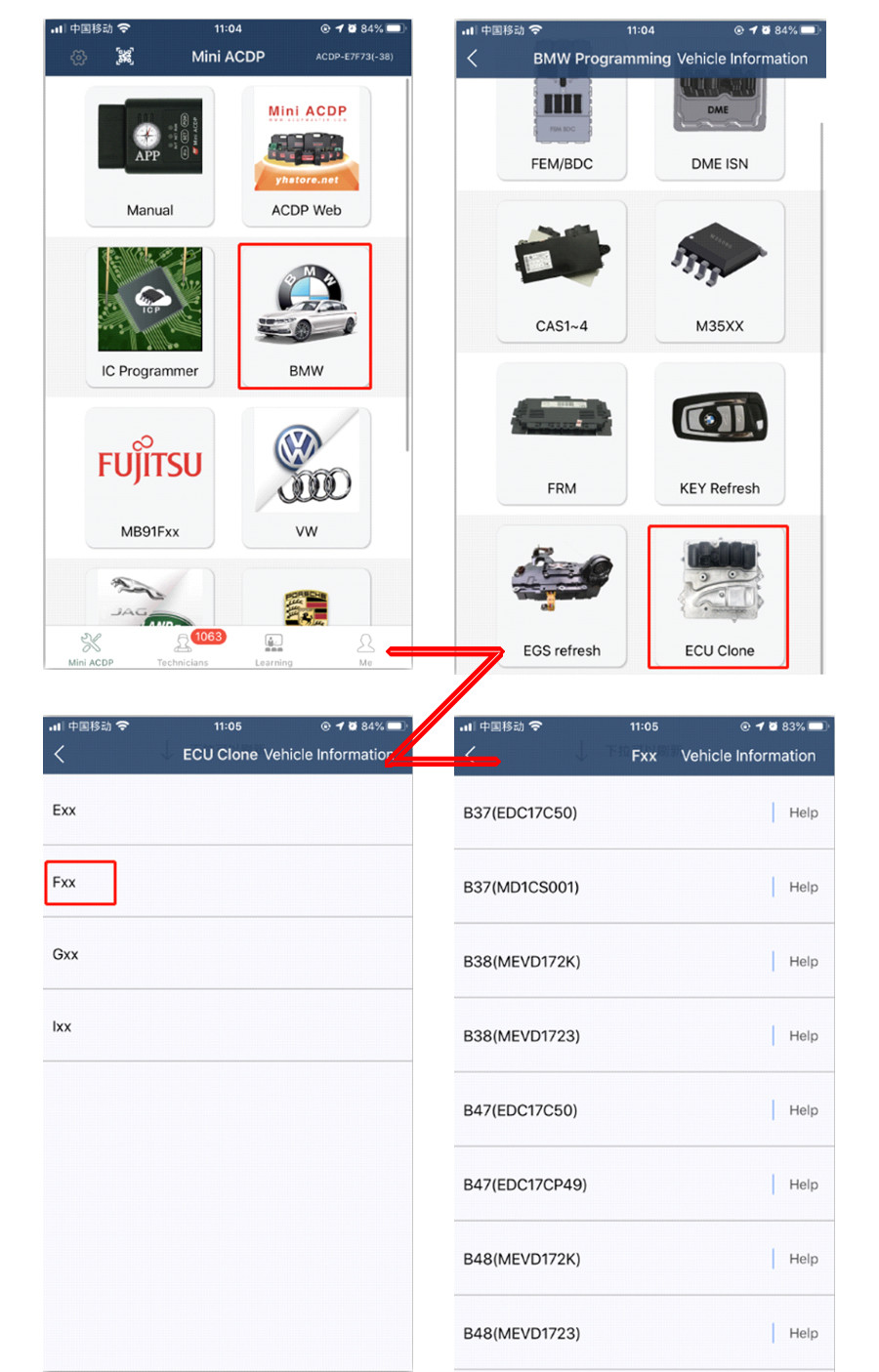

Screen of clone:
Bench mode BMW-DME-Adapter X2 interface board
Functions:
1:Support BMW E chassis N47 / N57DME ISN Read /Write and clone.
2: Support BMW F chassis N47 / N57 DME ISN Read /Write and clone.
Advantage:
1:No need to open DME shell, no need to drill hole on DME, no need to plug wire.
2:The special interface board connection method replaces the traditional plugging wire method to prevent plug wire to opposite direction and wrong place, simple and efficient, plug and play, safe and reliable.
Overall connection diagram:

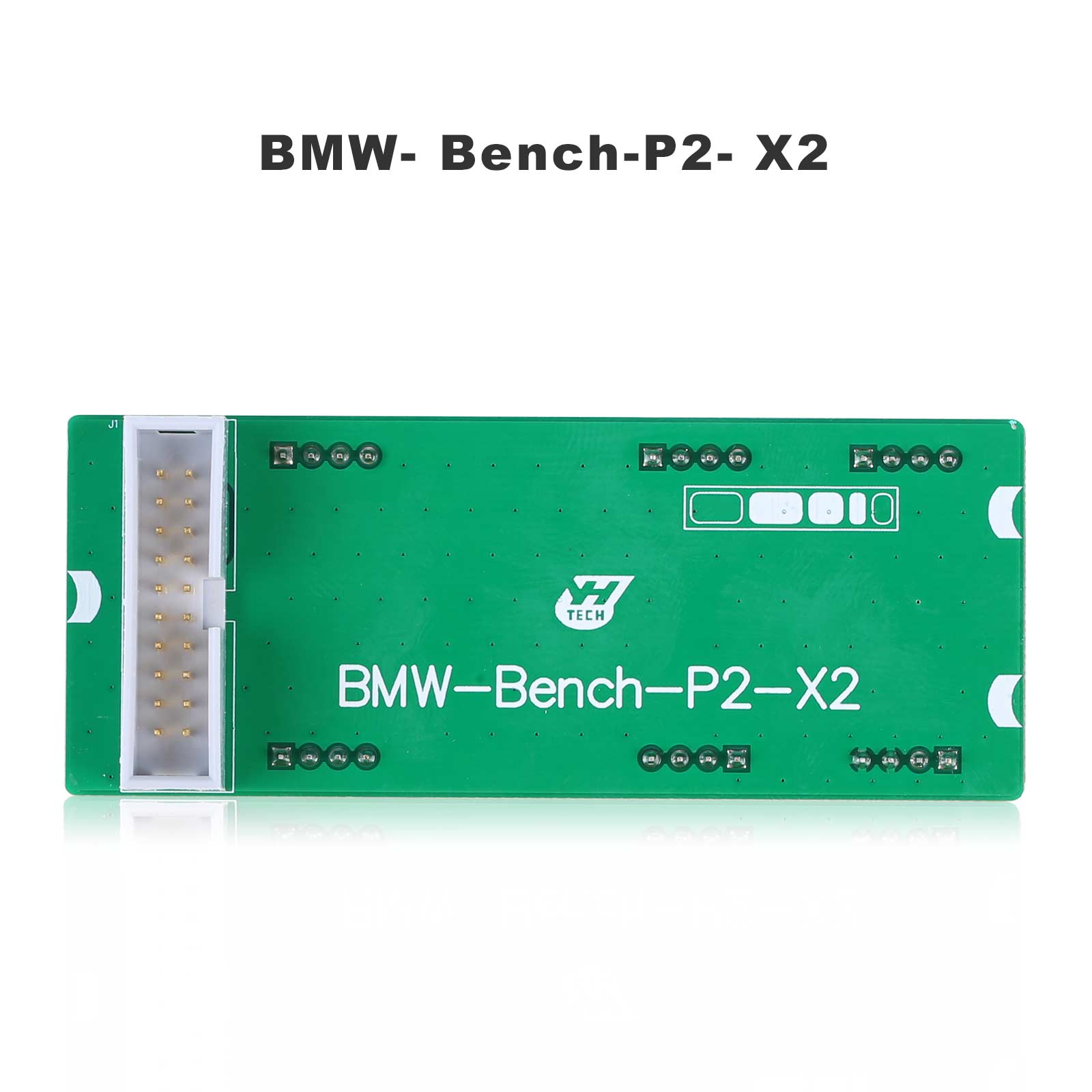

BMW-DME- Adapter X2
Screen of ISN read/write:
Screen of clone:

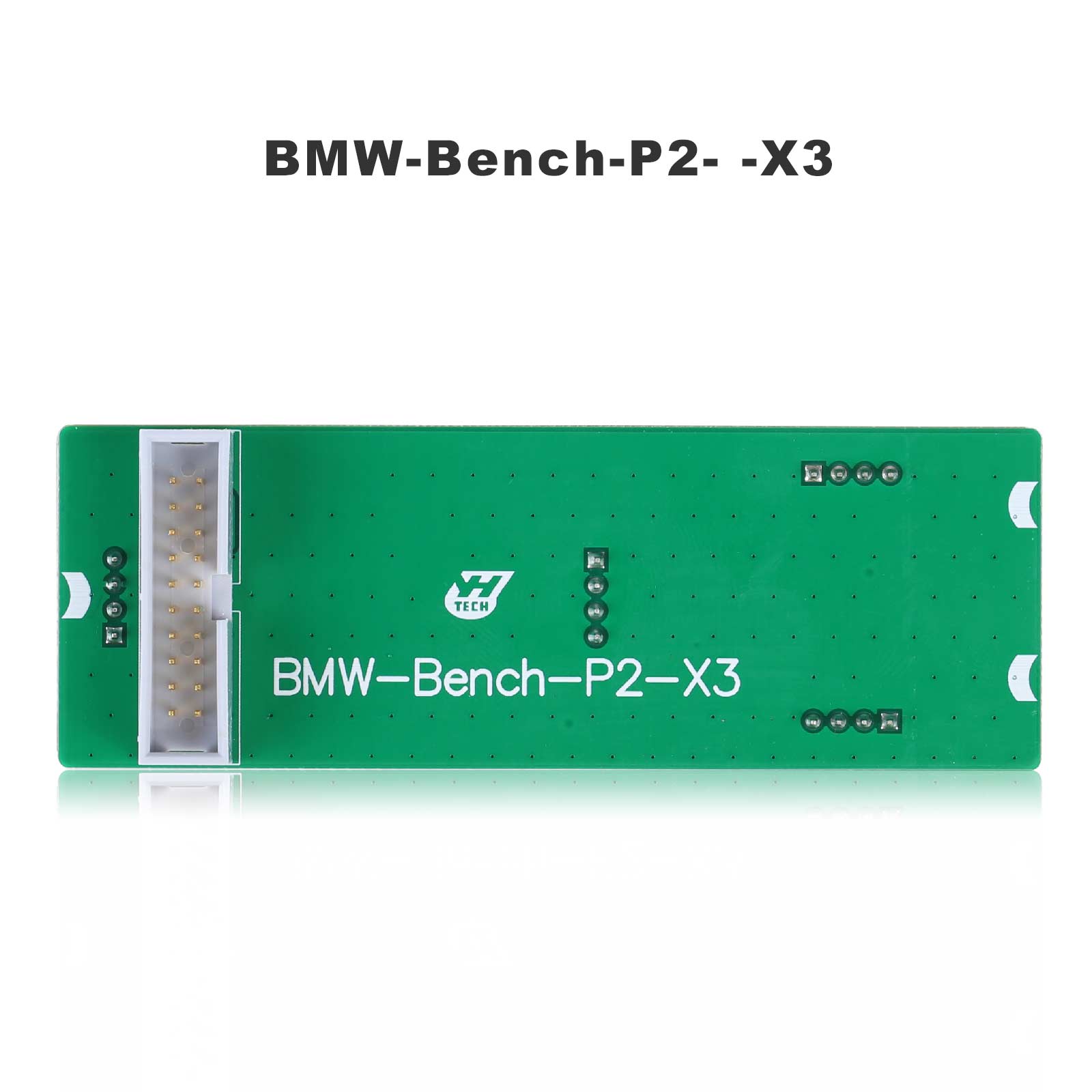

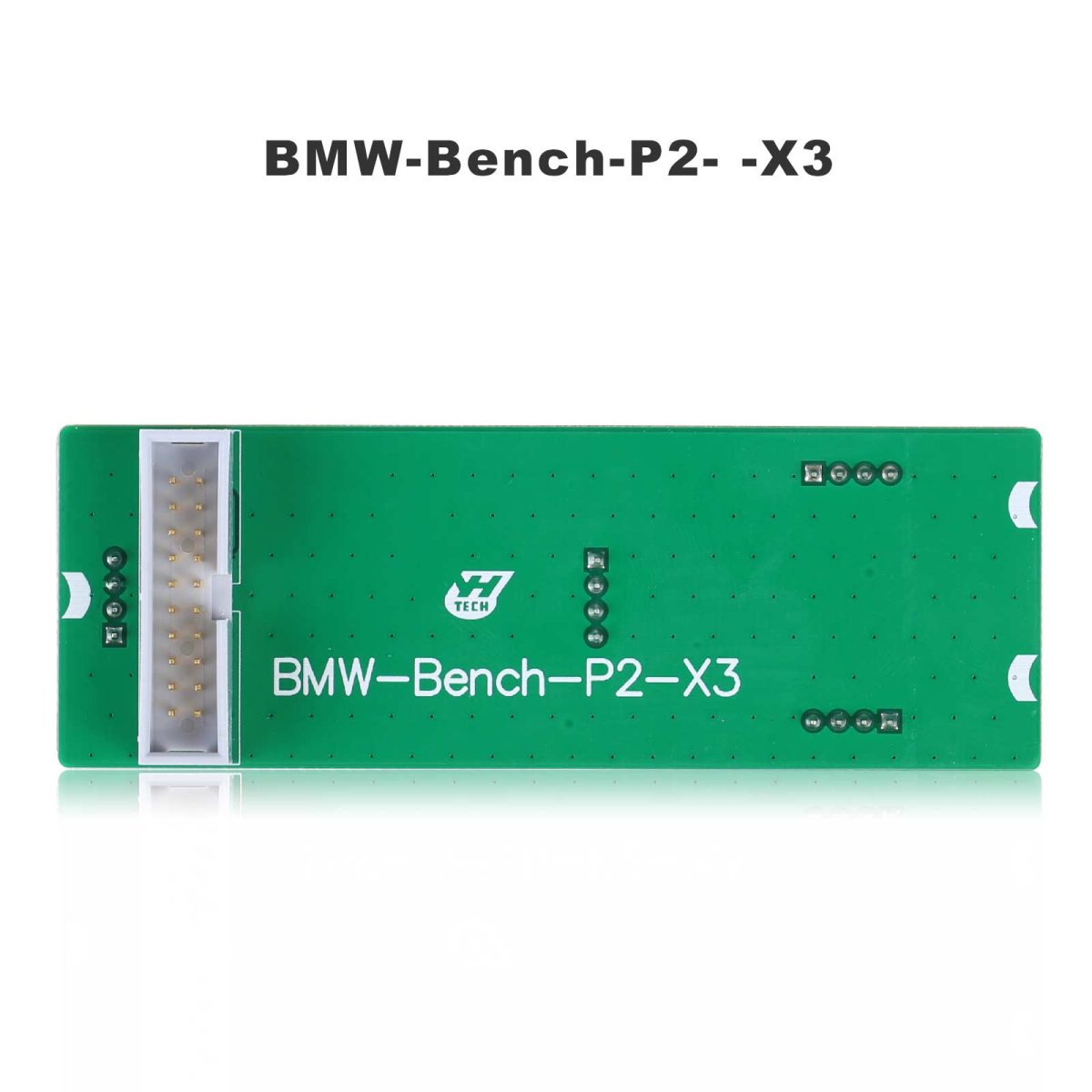

Bench mode BMW-DME-Adapter X3 interface board
Functions:
Support BMW I chassis BMSX (ME172) DME ISN Read /Write and clone.
Advantage:
1:No need to open DME shell, no need to drill hole on DME, no need to plug wire.
2:The special interface board connection method replaces the traditional plugging wire method to prevent plug wire to opposite direction and wrong place, simple and efficient, plug and play, safe and reliable.
Overall connection diagram:

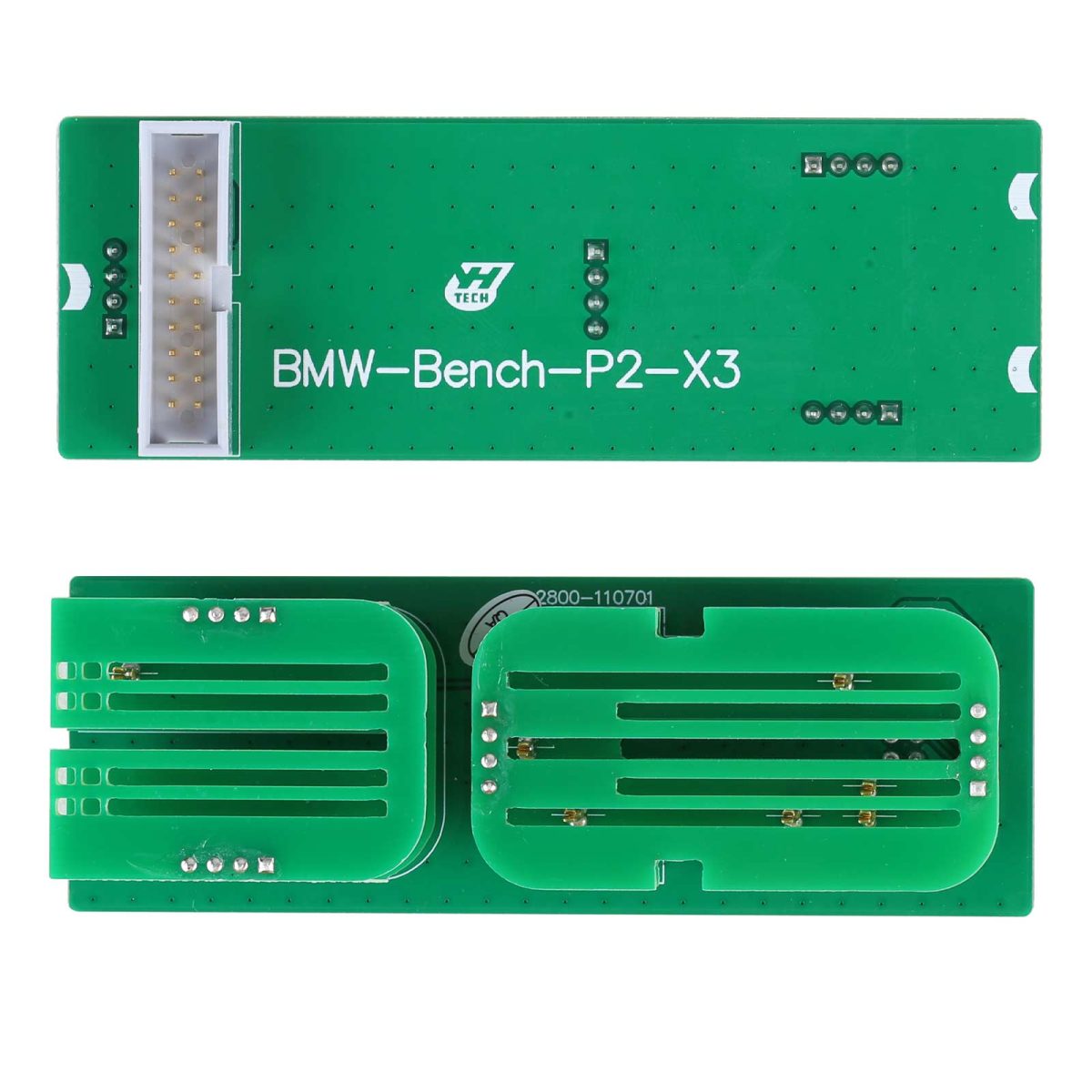

BMW-DME- Adapter X3
Screen of ISN read/write:

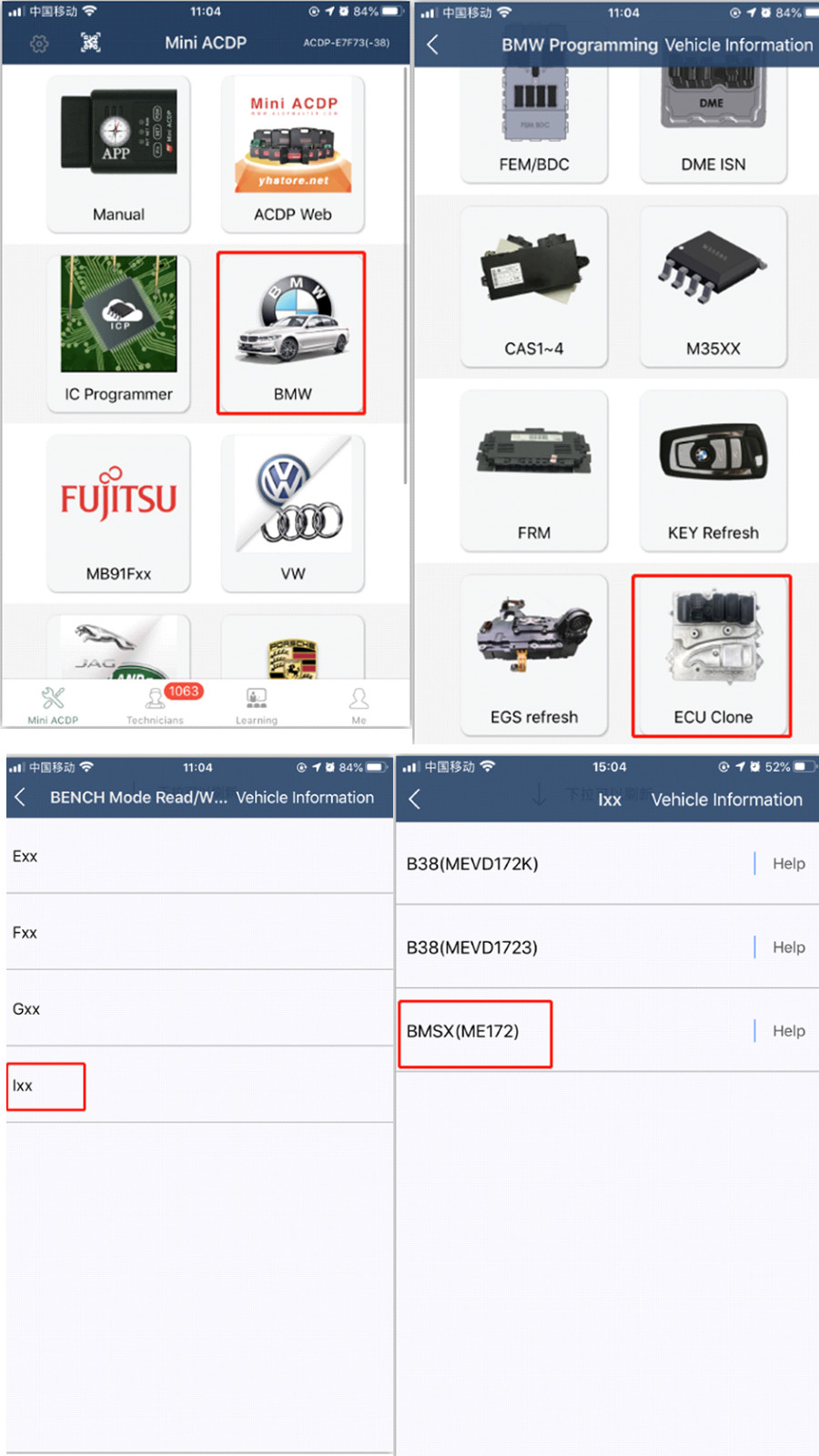

Screen of clone:
Package Includes:
1pc x plastic box
